ATORN square end mill cutter PM TiAlN, DIN 844B, TYPE NR, 10.0 mm diameter

ATORN square end mill cutter PM TiAlN, DIN 844B, TYPE NR, 10.0 mm diameter

ATORN square end mill cutter PM TiAlN, DIN 844B, TYPE NR, 10.0 mm diameter
Item no: 1016186 110

Online price:

Available in 4-6 working days.

Application
Universal end mill for plunge, groove and slot milling as well as for face and circumferential milling. Optimized cutting material for unstable clamping conditions and increased service life. Also suitable for milling with compressed air.

Execution
  • HSSE PM
  • Centre cutting
  • Straight shank pursuant to DIN 1835 HB
  • Roughing teeth
  • TiAIN-coating for maximum service life


Brand: ATORN
Cutting material: HSSE-PM
Surface: TiAlN
Type: NR
Number of cutting edges (Z): 3 PCS
Twist angle: 30°
Edge protection chamfer length: 0,1 mm
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 10 mm
Cutting edge length: 22 mm
Length: 72 mm
Shank diameter: 10 mm
fz steel 700: 0,093 mm

ATORN-No.: 11650024

EAN no.: 4050293192186

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 5.6 mm
    31,51 €
  • Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 8.5 mm
    43,25 €
  • Twist drill bit HSS-PM SG-coated 135° tip angle 5xD dia. 9.0 mm
  •
    Hand tap DIN 352 no. 2 second tap HSS M1.4
    27,88 €
  • ATORN square end mill cutter PM TiAlN, DIN 844B, TYPE NR, 8.0 mm diameter
    39,92 €
  • ATORN square end mill cutter PM TiAlN, DIN 844B, TYPE NR, 12.0 mm diameter
    49,63 €
  • ATORN square end mill cutter PM TiAlN, DIN 844B, TYPE NR, 18.0 mm diameter
    86,65 €
  • ATORN square end mill cutter PM TiAlN, DIN 844B, TYPE NR, 20.0 mm diameter
    108,98 €
  • Measuring and test pin holder for plug gauges, clamping range 4.51-6.99 mm
    29,16 €
  • COMBIDISC grinding disc corundum A-Forte light brown grain 120 dia. 25 mm
  •

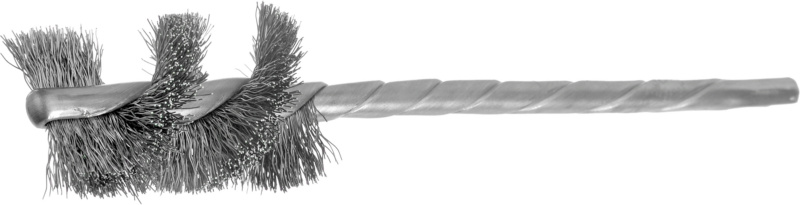

    ATORN stainless V2A wire tube brush, 0.13 mm, 25x27.0x25x89 mm
