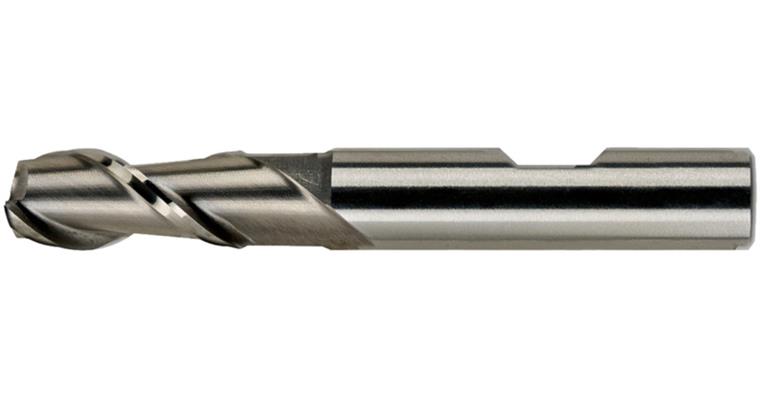

End mill cyl. DIN 844 B type W short 2 cutting edges centre-cutting HSS-E 2.0 mm

End mill cyl. DIN 844 B type W short 2 cutting edges centre-cutting HSS-E 2.0 mm

End mill cyl. DIN 844 B type W short 2 cutting edges centre-cutting HSS-E 2.0 mm
Item no: 1016153 101

Online price:

Available in 6-8 working days.

Application
For soft to tough, long-chipping materials such as aluminium and copper alloys.

Execution
  • Short
  • HSSE Co8
  • Uncoated
  • Right-cutting
  • Right-hand twist, approx. 42°
  • Centre cutting
  • Straight shank with driving surface in accordance with DIN 1835 B


Brand: HHW
Material to be processed: Aluminium
Cutting edge diameter: 2 mm
Cutting edge length: 7 mm
Length: 51 mm
Shank diameter: 6 mm
Number of cutting edges (Z): 2 PCS
Twist angle: 42°
Type: W
Construction length: Normal
Coolant supply: External
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
Tolerance of cutting edge diameter: e8
Tolerance of shank diameter: h6

Versions
