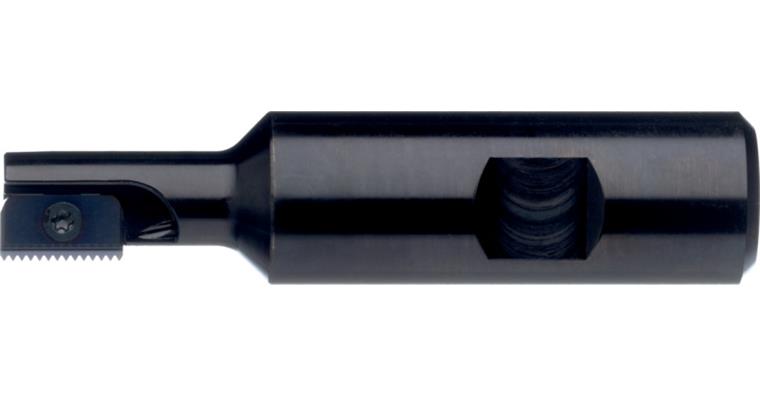

ATORN thread milling cutter holder, single cutter, steel size 30, 29 mm, HB

ATORN thread milling cutter holder, single cutter, steel size 30, 29 mm, HB

ATORN thread milling cutter holder, single cutter, steel size 30, 29 mm, HB
Item no: 1014625 109

Online price:

Available in 4-6 working days.

Application
For using ground thread milling cutter inserts no. 13397.

Execution
Burnished steel tool holder with one insert seat

Advantage
  • High process reliability and dimensional accuracy due to precise insert seating
  • High-quality carrier material for very high service life requirements


Brand: ATORN
Tool holding device: HB parallel shank
Coolant supply: Internal
Suitable for indexable insert size: 30
Cutting edge length: 30 mm
Cutting edge diameter (d1): 29 mm
Suitable for min. diameter: 37,4 mm
Shank diameter: 25 mm
Length (l1): 110 mm
Effective length of thread milling (l2): 50 mm

ATORN-No.: 11940103

EAN no.: 4050293205329

Product Datasheet Datasheet cutting values
