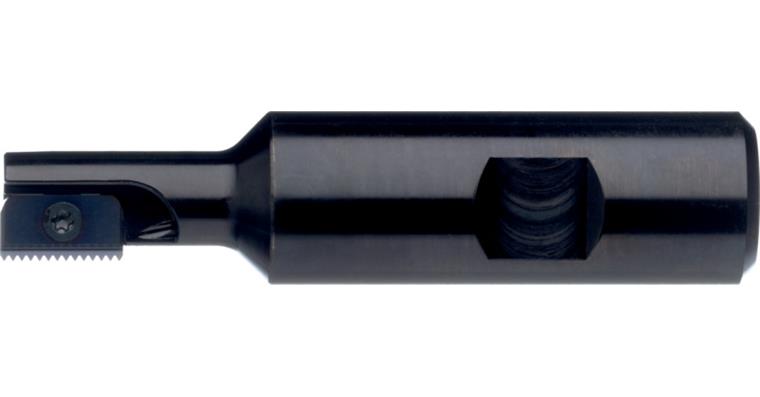

ATORN thread milling cutter holder, single cutter, steel size 21, 21 mm, HB

ATORN thread milling cutter holder, single cutter, steel size 21, 21 mm, HB

ATORN thread milling cutter holder, single cutter, steel size 21, 21 mm, HB
Item no: 1014625 107

Online price:

Still in stock: 2

Application
For using ground thread milling cutter inserts no. 13397.

Execution
Burnished steel tool holder with one insert seat

Advantage
  • High process reliability and dimensional accuracy due to precise insert seating
  • High-quality carrier material for very high service life requirements


Brand: ATORN
Tool holding device: HB parallel shank
Coolant supply: Internal
Suitable for indexable insert size: 21
Cutting edge length: 21 mm
Cutting edge diameter (d1): 21 mm
Suitable for min. diameter: 27,1 mm
Shank diameter: 20 mm
Length (l1): 94 mm
Effective length of thread milling (l2): 40 mm

ATORN-No.: 11940098

EAN no.: 4050293205275

Product Datasheet Datasheet cutting values
