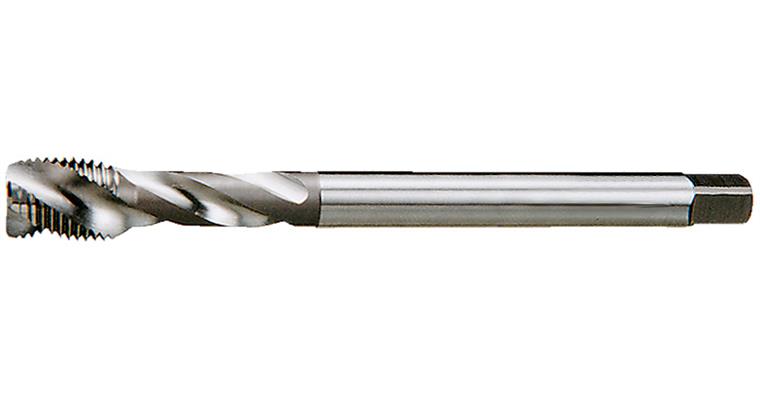

Blind hole screw tap UNF DIN 2184-1 40° shape C 2.5xD HSS-E 5/16 inch

Blind hole screw tap UNF DIN 2184-1 40° shape C 2.5xD HSS-E 5/16 inch

Blind hole screw tap UNF DIN 2184-1 40° shape C 2.5xD HSS-E 5/16 inch
Item no: 1014582 212

Online price:

Available in 6-8 working days.

Application
- UNF thread
- Blind holes
- Max. drilling depth 2.5xD
- Steels up to 800 N/mm²

Execution
  • DIN 2184-1
  • Right-hand spiral flute approx. 40°
  • DIN chamfer shape C (2-3 turns)


Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter in inches: UNF 5/16 in
Max. thread depth: 2.5xD
Thread dimension: 5/16 inch - 24UNF
Number of thread starts per inch: 24
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 90 mm
Cutting edge length: 12 mm
Core hole diameter: 6,90 mm
Shank diameter: 6 mm
Shank square: 4,9 mm
Thread type: UNF
Twist angle: 40° (right)
Coolant supply: External
Nominal diameter in inches: 5/16 in
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
