ATORN screw tap HSSE V3 C 40° MF14x1.5 ISO2 2.5xD CNC UNI

ATORN screw tap HSSE V3 C 40° MF14x1.5 ISO2 2.5xD CNC UNI

ATORN screw tap HSSE V3 C 40° MF14x1.5 ISO2 2.5xD CNC UNI
Item no: 1014517 111

Online price:

Still in stock: 2

Application
For producing fine metric threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1200 N/mm².

Advantage
  • Universal use for maximum flexibility of application
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric fine thread
Thread type x nominal diameter: MF14
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 100 mm
Cutting material: HSSE V3
Surface: Vaporised
Pitch: 1,5 mm
Twist angle: 40° (right)
DIN: 374
Shank diameter: 11 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 12,5 mm
Type: UNI MAX 40 Control
Shank square: 9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 2
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 12280182

EAN no.: 4050293426168

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN machine tap HSSE HL VA, 6HX, 0 degrees, form B, M5
  •
    ATORN screw tap HSSE B DIN 371 0° UNC 10 in 24 2B D 3xD CNC P
  •
    Hand tap set 3 pieces DIN 352 HSS M11
  •
    Hand tap set 3 pieces DIN 352 HSS M30
  •
    Blind hole screw tap M 2-Enorm DIN 376 39° shape C 2.5xD HSS-E M14
  •
    ATORN screw tap HSSE-PM ULTRA HL form B DIN 374 0° MF22x1.5 ISO2
  •
    ATORN screw tap HSSE-PM ULTRA HL form C 374 50° MF22x1.5 ISO2
  •

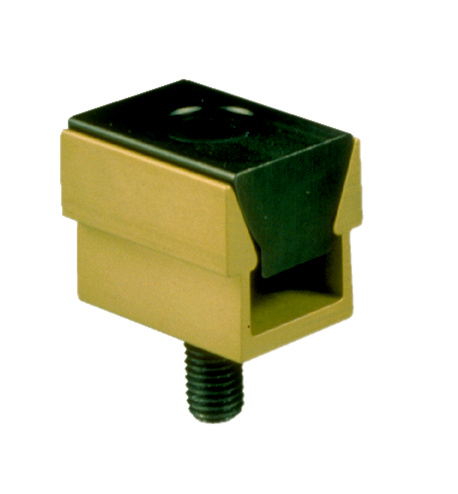

    Double wedge clamping device clamping force 2.2 kN pack=8 pcs.
  •
