Blind hole screw tap MF DIN 374 15° shape C 2.5xD HSS-E MF24x2.00

Blind hole screw tap MF DIN 374 15° shape C 2.5xD HSS-E MF24x2.00

Blind hole screw tap MF DIN 374 15° shape C 2.5xD HSS-E MF24x2.00
Item no: 1014507 136

Online price:

Available in 6-8 working days.

Application
- Metric fine thread
- Blind holes
- Max. drilling depth 2.5xD
- Steels up to 800 N/mm²

Execution
  • For low-level chip transport to the rear
  • Tolerance range 6H
  • DIN 374
  • Right-hand spiral grooves approx. 15°
  • DIN type C (2-3 chamfer threads)
  • HSSE


Brand: ATORN
Material to be processed: Steel
Thread type: Metric fine thread
Thread dimension: M24
Thread type x nominal diameter: MF24
Tolerance of screw taps (Tol.): 6H
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 140 mm
Cutting material: HSSE
Surface: Uncoated
Pitch: 2 mm
Twist angle: 15° (right)
DIN: 374
Shank diameter: 18 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 22,00 mm
Coolant supply: External
Shank square: 14,5 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

Versions
loading
Keywords:

You might also be interested in this

  • Blind hole screw tap MF DIN 374 40° shape C 2.5xD HSS-E MF24x1.50
  •
    Shrink-fit chuck DIN 69871 shape AD SK40 long diameter 14 x 120 mm
  •
    Blind hole screw tap MF DIN 374 40° shape C 2.5xD HSS-E MF16x1.50
  •
    Blind hole screw tap MF DIN 374 40° shape C 2.5xD HSS-E MF10x1.25
  •
    ATORN screw tap HSSE C 374 40° MF10 1.25 mm ISO2 S 2.5xD CNC P
  •
    SC HPC roughing cutter ZRN 43/47° normal w. clearance HB shank T=3 dia. 20x104mm
  •

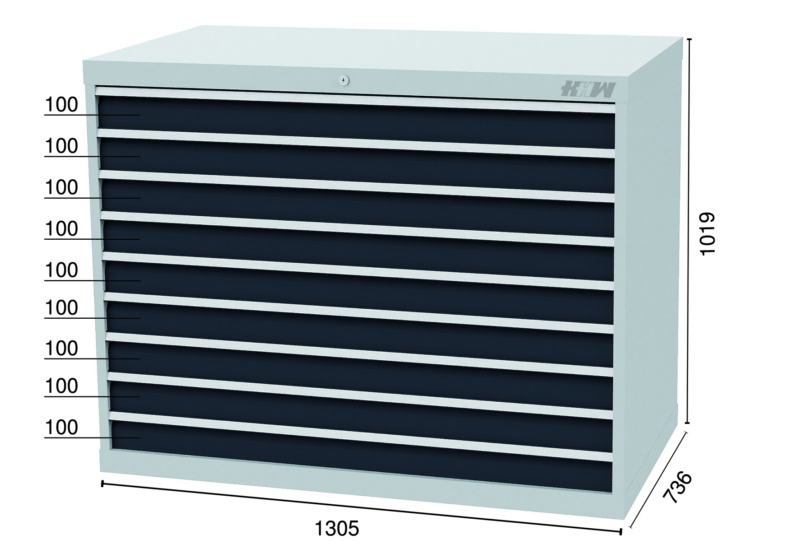

    Tool cabinet 1305x736x1019mm 9 drawers 9x100 mm 7035/5010
  •
