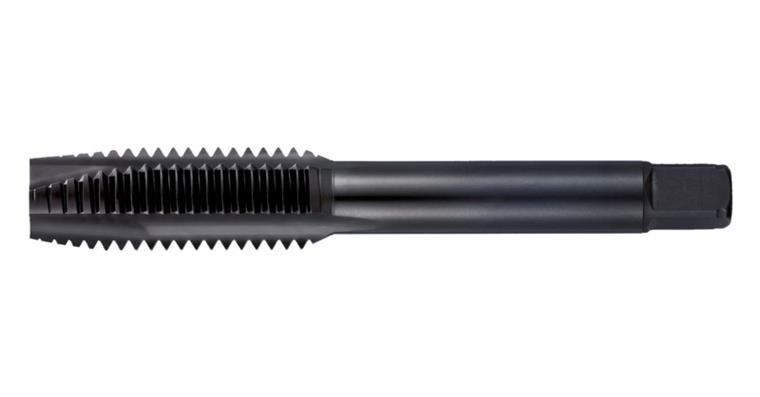

Through hole screw tap Hyper Z VA 0° HSS-E DIN 371 shape B 6H M3

Through hole screw tap Hyper Z VA 0° HSS-E DIN 371 shape B 6H M3

Through hole screw tap Hyper Z VA 0° HSS-E DIN 371 shape B 6H M3
Item no: 1014414 200

Online price:

Still in stock: 2

Application
For non-rusting materials up to 1,100 N/mm².

Execution
  • Metric thread
  • Through-hole thread
  • Right-cutting with spiral point
  • HSSE

Notes
UNI high-performance screw taps with optimal cutting geometry, long service life and process reliability!

Brand: NACHI
Material to be processed: Aluminium | Copper | Stainless steel | Steel
Thread type x nominal diameter: M3
Max. thread depth: 2xD
Pitch: 0,5 mm
Cutting material: HSSE
Surface: Vaporised
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 56 mm
Cutting edge length: 10 mm
Core hole diameter: 2,50 mm
Shank diameter: 3,5 mm
Shank square: 2,7 mm
Thread type: Metric thread
Type: Hyper Z VA
Twist angle: 0°
DIN: 371
Coolant supply: External
Nominal diameter: 3 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: L6872 M3

Product Datasheet Datasheet cutting values
