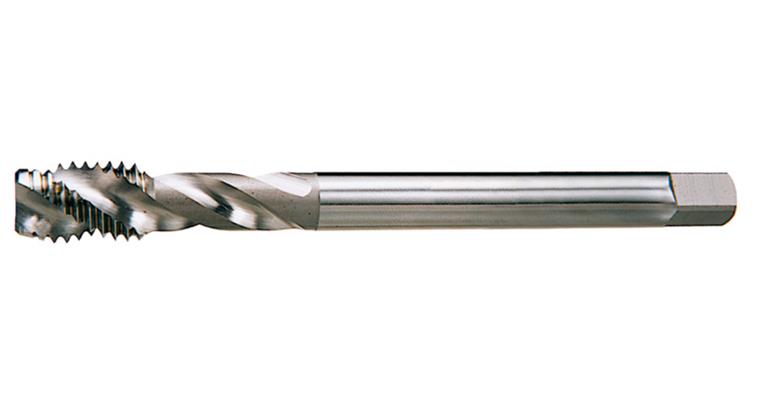

Blind hole screw tap M DIN 371 tolerance 6G 40° shape C 2xD HSS-E M8

Blind hole screw tap M DIN 371 tolerance 6G 40° shape C 2xD HSS-E M8

Blind hole screw tap M DIN 371 tolerance 6G 40° shape C 2xD HSS-E M8
Item no: 1014408 209

Online price:

Available in 6-8 working days.

Application
- Metric thread
- Blind holes
- Max. drilling depth 2xD
- Steels up to 800 N/mm²

Execution
  • Tolerance field 6G
  • DIN 371
  • Right-hand spiral flute approx. 40°
  • DIN chamfer shape C (2-3 turns)
  • HSS-E

Notes
For workpieces that are retrofitted with a galvanic coating.

Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: M8
Max. thread depth: 2xD
Thread dimension: M8
Pitch: 1,25 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2xD
Tolerance of screw taps (Tol.): ISO 3 (6G)
Lead angle shape: C
Length: 90 mm
Cutting edge length: 13 mm
Core hole diameter: 6,80 mm
Shank diameter: 8 mm
Shank square: 6,2 mm
Thread type: Metric thread
Twist angle: 40° (right)
DIN: 371
Coolant supply: External
Nominal diameter: 8 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
