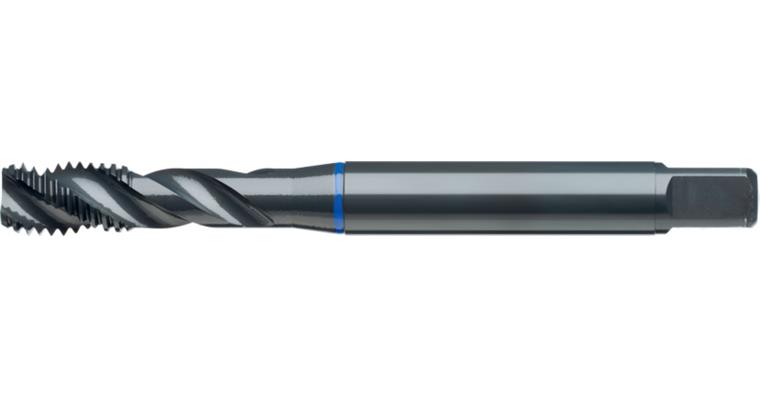

ATORN screw tap HSSE E 371 40° M4 0.7 mm ISO2 S 2.5xD CNC P

ATORN screw tap HSSE E 371 40° M4 0.7 mm ISO2 S 2.5xD CNC P

ATORN screw tap HSSE E 371 40° M4 0.7 mm ISO2 S 2.5xD CNC P
Item no: 1014399 104

Online price:

Available in 6-8 working days.

Application
For producing metric threads nearly to the base on CNC machines or conventional machines in blind holes in the steel, (stainless steel), non-ferrous metals and (cast iron) material groups up to a strength of 1000 N/mm².

Execution
with reinforced shank

Advantage
  • good service life and process reliability thanks to innovative cutting geometry and universal use for the greatest flexibility in applications
  • thread cutting nearly to the thread base


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M4
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: E
Length: 63 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 0,7 mm
Twist angle: 40° (right)
DIN: 371
Shank diameter: 4,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 3,3 mm
Type: P MAX 1000
Coolant supply: External
Shank square: 3,4 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 2
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10470969

EAN no.: 4050293019926

Product Datasheet Datasheet cutting values
