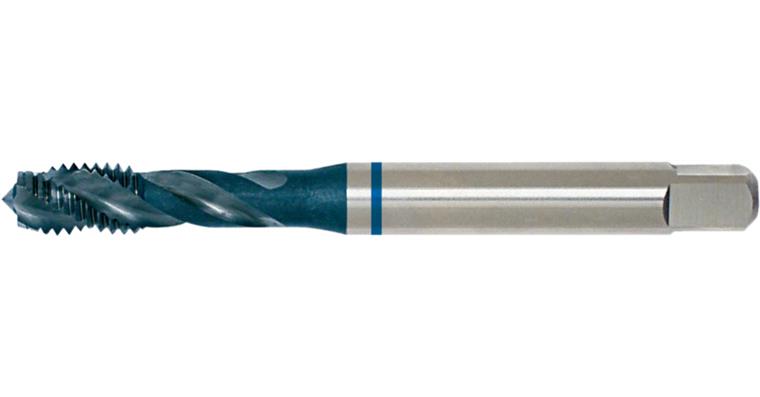

Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E-TiCN M8

Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E-TiCN M8

Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E-TiCN M8
Item no: 1014398 108

Online price:

Available for immediate delivery

Application
- Metric thread
- Blind holes
- Max. drilling depth 2.5xD
- Steels up to 1,000 N/mm²

Execution
  • With enlarged chip area
  • Tolerance range 6H
  • DIN 371/DIN 376
  • Right-hand spiral grooves approx. 40°
  • DIN type C (2-3 chamfer threads)
  • HSSE, TiCN-coated

Advantage
Excellent emergency running properties and the most rigorous standards in terms of performance due to special TiCN coating


Brand: ATORN
Material to be processed: Steel
Thread type: Metric thread
Thread dimension: M8
Thread type x nominal diameter: M8
Tolerance of screw taps (Tol.): 6H
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 90 mm
Cutting material: HSSE
Surface: TiCN
Pitch: 1,25 mm
Twist angle: 40° (right)
DIN: 371
Shank diameter: 8 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 6,80 mm
Coolant supply: External
Shank square: 6,2 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290351

EAN no.: 4050293133608

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN hand tap VS HSSE nitrided A 352 0° M6 1 mm ISO2 D/S 3xD
  •
    ATORN screw tap HSSE UltraHL B 374 0° MF8 1 mm ISO2 D 3xD CNC UNI
  •
    ATORN sync. screw tap HSSE-PM TiCN HB B 371 0° M3 0.5 mm ISO2 D 3xD CNC UNI
  •
    ATORN NC spotting drill HSSE-TiNAlOX 90°, 10.0 mm x 89 mm HB
  •
    Blind hole screw tap M uni DIN 371 45° shape C 2.5xD PM-TiCN M6
  •
    Blind hole screw tap UNF DIN 371 40° shape C 3xD HSS-E 3/8 inch
  •
    ATORN solid carbide ball-nose end mill T=2 long HA 6.0x16x94x150 mm, coated
  •
    Keyless drill chuck Extra RV threaded chuck 3/8 inch x 24 1.5-13 mm
  •
    LIZZARD Spannzange ER 20 HP Ø 7,5 Gummi abgedichtet Rundlauf 0,005 mm
  •
    Steel gauge needle for probe heads MR 1.50-2.45 mm cat. no. 33823 101-103
  •
    Radio pliers 160 mm angled 40° multi-component sleeves, chrome-plated head
  •

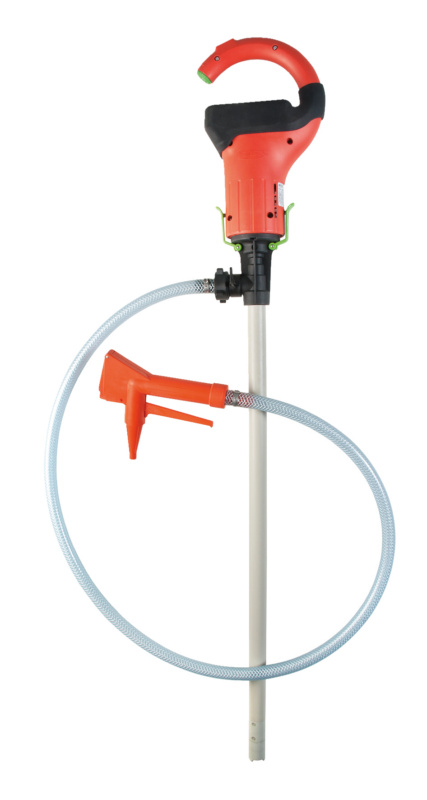

    Pump set Combiflux for filling, transferring and metering acids and alkalis
