ATORN thread mould HSSE-PM TiCN DIN 371 M10 x 1.5 mm ISO 2 3xD, internal radial

ATORN thread mould HSSE-PM TiCN DIN 371 M10 x 1.5 mm ISO 2 3xD, internal radial

ATORN thread mould HSSE-PM TiCN DIN 371 M10 x 1.5 mm ISO 2 3xD, internal radial
Item no: 1014380 110

Online price:

Still in stock: 9

Application
For producing metric threads in through holes and blind holes on CNC or conventional machines in steel, stainless steel and non-ferrous metals up to a strength of 1300 N/mm².

Advantage
  • Innovative mould geometry ensures very high dimensional accuracy and process reliability
  • High-quality, torsion-resistant HSSE PM cutting material and surface finish for very high service life requirements


Brand: ATORN
Material to be processed: Universal use
Surface: TiCN
Lead angle shape: C
Thread type: Metric thread
Thread type x nominal diameter: M10
Pitch: 1,5 mm
Cutting material: HSSE-PM
Core hole diameter: 9,3 mm
Length: 100 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank diameter: 10 mm
Shank square: 8 mm
Coolant supply: External
Tolerance of screw taps: ISO 2X (6HX)
Application type/machine type: CNC | Conventional
Cutting speed (steel 1000) suitability (P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (P 1300 N/mm²): 1
Overall stainless steel suitability (M): 1
fitness not iron total (N): 2
Cutting speed (cast) suitability (K): 3
fitness Titan/Nickel/Super total (S): 3
Cutting speed (hard 65) suitability (H 65HRC): 3
DIN: 371

ATORN-No.: 10483195

EAN no.: 4050293582758

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN hand tap VS HSSE nitrided A 352 0° M8 1.25 mm ISO2 D/S 3xD
  •
    ATORN hand tap VS HSSE nitrided A 352 0° M10 1.5 mm ISO2 D/S 3xD
  •
    ATORN solid carbide drill UNI TiAlNplus 5xD with IC 5.0 mm straight shank HA
  •
    ATORN countersink, 90°, HSSE TiAlN, unequal spiral pitch, 6.3 mm
  •
    ATORN screw tap HSSE-PM ULTRA HL C 371 50° M10 1.5 external
  •
    Thread repair inserts pack=20 pieces M5 x 10 for cat. no. 14800+14810
  •
    Thread repair inserts pack=10 pieces M8 x 8 for cat. no. 14800+14810
  •
    HHW SC HPC end mill INOX long Alcrona Pro HB shank Z4 dia. 10
    30,40 €
  • VHM-HPC Torusfräser INOX Gr.M Alcrona Pro HB-Schaft Z4 Ø10 ER1,0
  •
    ATORN solid carbide HPC end mill Z4 HA shaft diameter 10.0 x 22 x 72 mm
  •
    ATORN HPC drill and plunge mill, 10x14x24x66, T4, HA shank, ULTRA-coated
  •

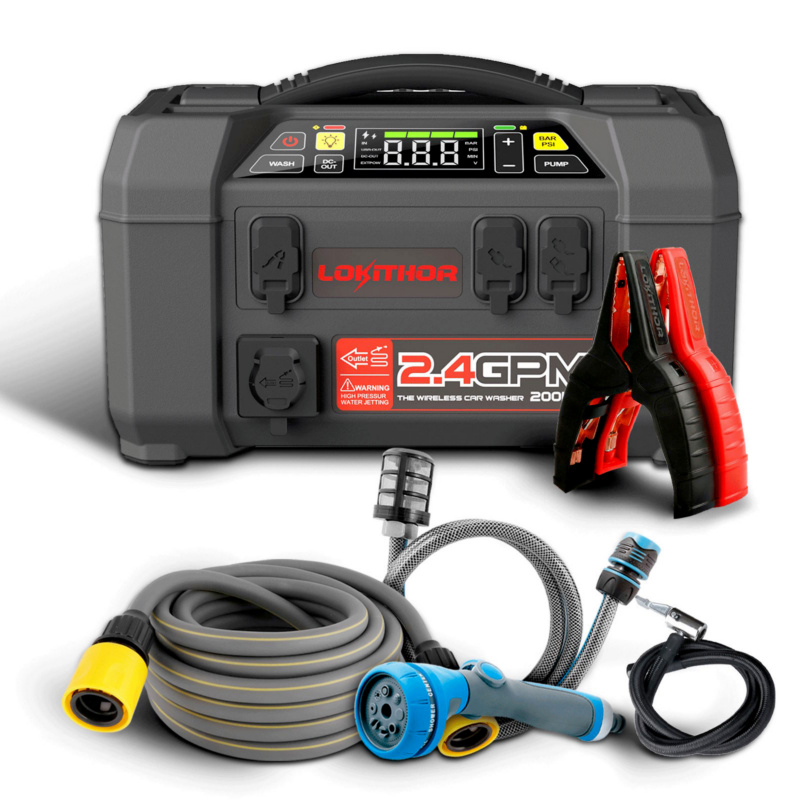

    Starthilfegerät AW401 mit Akku-Hochdruckreiniger und Kompressor
