Through hole screw tap M DIN 371 shape C 2xD HSS-E-TiN for grey cast iron M6

Through hole screw tap M DIN 371 shape C 2xD HSS-E-TiN for grey cast iron M6

Through hole screw tap M DIN 371 shape C 2xD HSS-E-TiN for grey cast iron M6
Item no: 1014358 206

Online price:

Available in 6-8 working days.

Application
- Metric thread
- Through holes
- Max. drilling depth 2xD
- For high cutting performance in grey cast iron

Execution
  • Without spiral point tap
  • For even longer service life
  • Tolerance range 6HX
  • DIN 371/376
  • HSSE, TiN-coated


Brand: ATORN
Material to be processed: Cast metal
Thread type: Metric thread
Thread dimension: M6
Thread type x nominal diameter: M6
Tolerance of screw taps (Tol.): 6HX
Hole type: Clearance hole ≤ 2xD
Lead angle shape: C
Length: 80 mm
Cutting material: HSSE
Surface: TiN
Pitch: 1 mm
Twist angle: 0°
DIN: 371
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 5,00 mm
Coolant supply: External
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290203

EAN no.: 4050293132533

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE TiN B 374 0° MF16 1.5 mm ISO2 D 3xD CNC UNI
    94,00 €
  • Through hole screw tap M DIN 371 shape C 2xD HSS-E-TiN for grey cast iron M5
    26,64 €
  • Machine thread former M DIN 371 shape C 2xD HSS-E-TiN w. lubrication grooves M8
    40,43 €
  • ATORN screw tap HSSE-PM ULTRA HL C 371 50° M8 1.25 internal
    68,61 €
  • Carbide offset facing lathe chisel DIN 4977/ISO 5 right set. angle 90° K10 25 Q
    21,75 €
  • HM offset side lathe chisel DIN 4980/ISO 6 right setting angle 90° P20 10 Q
    9,38 €

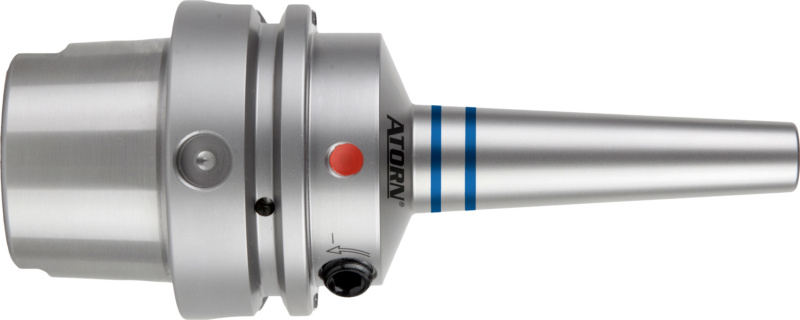

  • ATORN hydraulic expansion chuck 3° HSK63 (ISO 12164) dia. 12 mm A=120 mm
  •

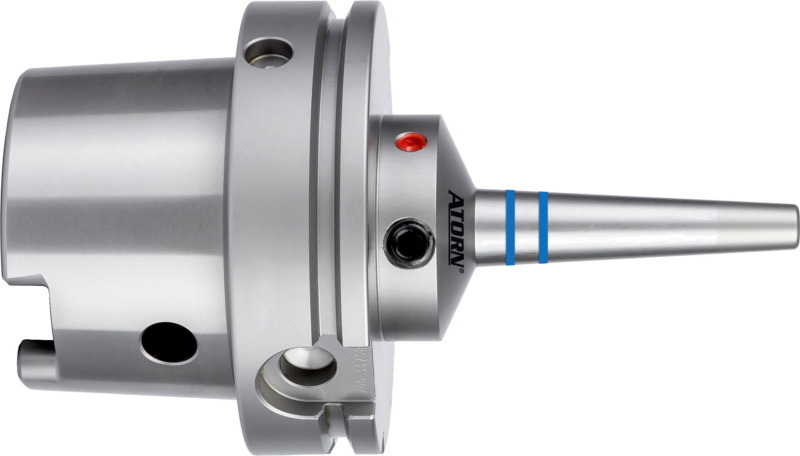

    ATORN hydraulic expansion chuck 3° HSK100 (ISO 12164) dia. 5 mm A=120 mm
  •
