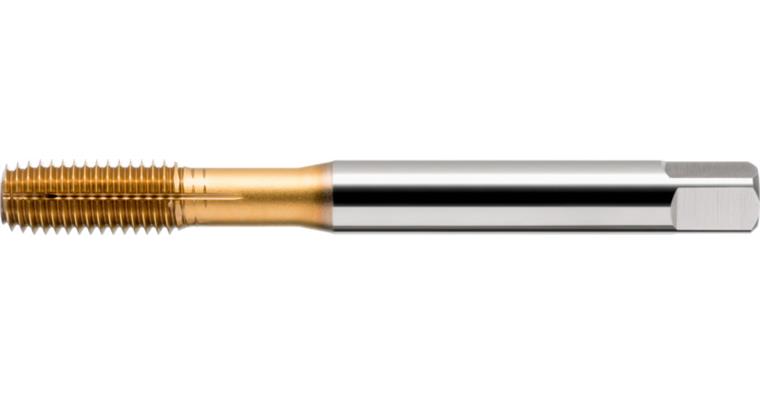

ATORN machine thread former HSSE TiN DIN 376 M12 x 1.75 mm 6HX

ATORN machine thread former HSSE TiN DIN 376 M12 x 1.75 mm 6HX

ATORN machine thread former HSSE TiN DIN 376 M12 x 1.75 mm 6HX
Item no: 1014357 112

Online price:

Available in 6-8 working days.

Application
For producing metric threads in through holes and blind holes on CNC or conventional machines in stainless steel and non-ferrous metals.

Advantage
  • Innovative mould geometry for stainless steel machining ensures very high dimensional accuracy and process reliability
  • High-quality, torsion-resistant HSSE cutting material and surface finish for very high service life requirements


Brand: ATORN
Material to be processed: Stainless steel | Aluminium
Surface: TiN
Lead angle shape: C
Thread type: Metric thread
Thread type x nominal diameter: M12
Pitch: 1,75 mm
Cutting material: HSSE
Core hole diameter: 11,2 mm
Length: 110 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank diameter: 9 mm
Shank square: 7 mm
Coolant supply: Internal radial
Tolerance of screw taps: ISO 2X (6HX)
Application type/machine type: CNC | Conventional
Cutting speed (steel 1000) suitability (P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (P 1300 N/mm²): 3
Overall stainless steel suitability (M): 1
fitness not iron total (N): 2
Cutting speed (cast) suitability (K): 3
fitness Titan/Nickel/Super total (S): 3
Cutting speed (hard 65) suitability (H 65HRC): 3
DIN: 376

ATORN-No.: 12280239

EAN no.: 4050293437515

Product Datasheet Datasheet cutting values
