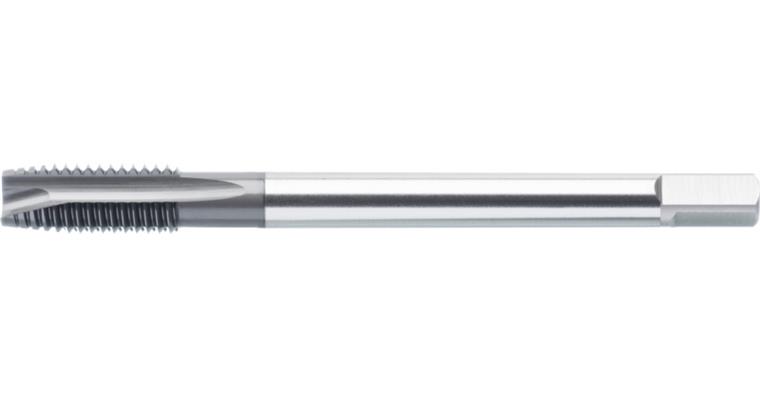

ATORN screw tap HSSE-PM ULTRA HL form B DIN 376 0° M3 ISO2

ATORN screw tap HSSE-PM ULTRA HL form B DIN 376 0° M3 ISO2

ATORN screw tap HSSE-PM ULTRA HL form B DIN 376 0° M3 ISO2
Item no: 1014347 203

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC machines or conventional machines in through holes in the steel, stainless steel, non-ferrous metals, cast and special alloys material groups up to a strength of 1200 N/mm².

Advantage
  • Universal use for maximum flexibility
  • Innovative cutting geometry ensures high process reliability even under difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M3
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Lead angle shape: B
Length: 56 mm
Cutting material: HSSE-PM
Surface: ULTRA HL
Pitch: 0,5 mm
Twist angle: 0°
DIN: 376
Shank diameter: 2,2 mm
Core hole diameter: 2,5 mm
Type: UNI MAX 50HL Speed
Coolant supply: External
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 12280609

EAN no.: 4050293731514

Product Datasheet Datasheet cutting values
