Through hole screw tap M DIN 376 shape B 2xD HSS-E-TiCN for VA steels M3

Through hole screw tap M DIN 376 shape B 2xD HSS-E-TiCN for VA steels M3

Through hole screw tap M DIN 376 shape B 2xD HSS-E-TiCN for VA steels M3
Item no: 1014334 203

Online price:

Available in 13-15 working days.

Application
Metric thread
Through holes
Max. drilling depth 2xD
VA steels up to 1,000 N/mm2

Execution
Spiral point

Notes
Cost-effective design.

Brand: LIZZARD
Material to be processed: Stainless steel
Thread type x nominal diameter: M3
Max. thread depth: 2xD
Pitch: 0,5 mm
Cutting material: HSSE
Surface: TiCN
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 56 mm
Cutting edge length: 10 mm
Core hole diameter: 2,50 mm
Shank diameter: 2,2 mm
Thread type: Metric thread
Twist angle: 0°
DIN: 376
Coolant supply: External
Nominal diameter: 3 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE B 371 0° M5 0.8 mm ISO2 3xD
  •
    ATORN screw tap HSSE TIAlN C 371 0° M10 1.5 mm ISO2 x D/S 3xD CNC K
  •
    Through hole screw tap M DIN 376 shape B 2xD HSS-E-TiCN for VA steels M8
  •
    Maschinen-Gewindebohrer Enorm 1-Z-X-PM-GLT-1 M3-6HX
  •
    ATORN screw tap HSSE-PM ULTRA HL B 5156 0° G 3/8 3xD CNC UNI
    101,87 €
  • SC roughing cutter type HR TiAlN 45° normal HB shank T=4 dia. 12x26x83 mm
    160,31 €
  • ATORN SC mini radius cutter TiAlSiN 0.5x0.4x50 mm clearance 0.47x8 mm
  •
    Eccentric clamping screw for T-grooves T10 clamping force 3.4 kN P=2 pcs.
  •
    Eccentric clamping screw for T-grooves T12 clamping force 3.6 kN P=2 pcs.
  •
    Ball probe no.8C f. dial gauges + precis. pointers conn. thr. M2.5 HM ins. 2 mm
  •
    1/4 inch bit assortment Torsion tough 30 pieces holder
    45,85 €

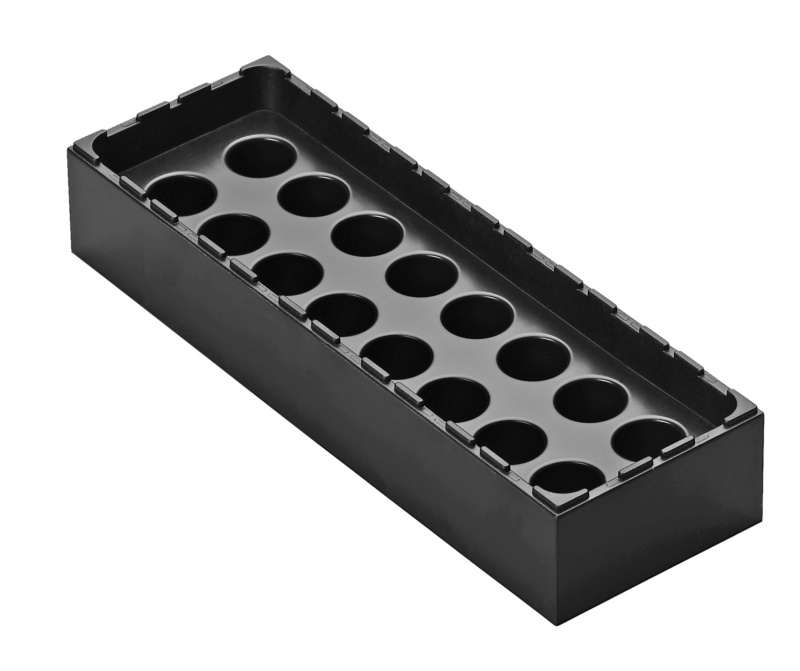

  • Tool holder ABS collet chuck box for ER 25, 16 slots 48x96x288 mm
