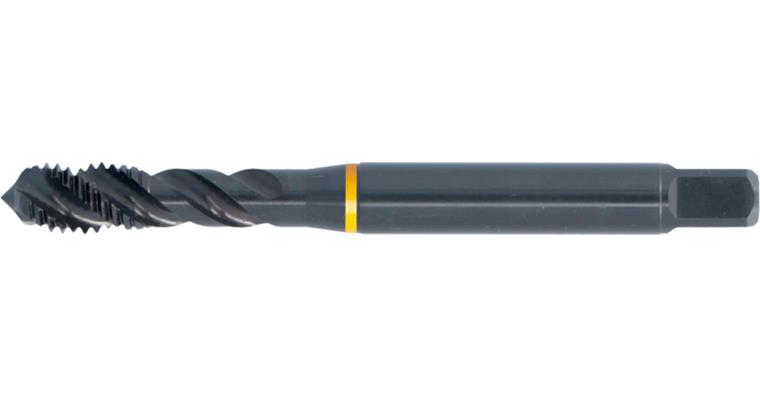

ATORN machine tap HSSE VA, 6HX, 45 degrees, form C, M2

ATORN machine tap HSSE VA, 6HX, 45 degrees, form C, M2

ATORN machine tap HSSE VA, 6HX, 45 degrees, form C, M2
Item no: 1014327 201

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC or conventional machines in blind holes, in stainless steel and Steel

Advantage
  • Ideal for long service life requirements for steel and stainless steel
  • Innovative cutting geometry ensures high process reliability in stainless steel


Brand: ATORN
Material to be processed: Stainless steel
Thread type: Metric thread
Thread type x nominal diameter: M2
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 45,00 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 0,4 mm
Twist angle: 45° (right)
DIN: 371
Shank diameter: 2,80 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 1,60 mm
Type: M MAX Speed
Coolant supply: External
Shank square: 2,10 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 2
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10487287

EAN no.: 4050293651492

Product Datasheet Datasheet cutting values
