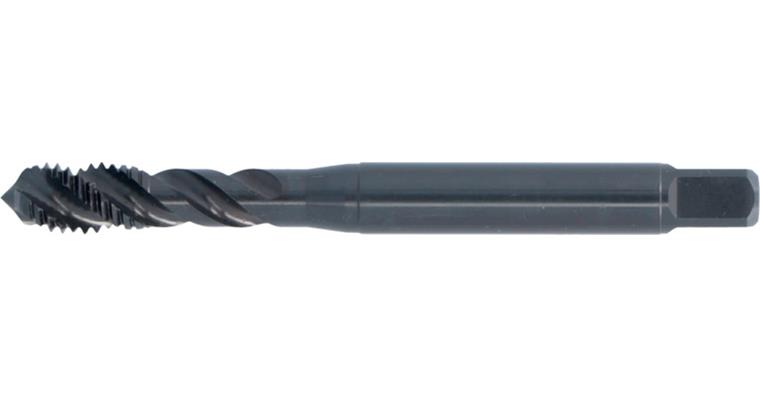

ATORN machine tap HSSE, 6HX, 45 degrees, form C, M12

ATORN machine tap HSSE, 6HX, 45 degrees, form C, M12

ATORN machine tap HSSE, 6HX, 45 degrees, form C, M12
Item no: 1014326 209

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in steel, stainless steel, non-ferrous metals, cast iron and special alloys up to 1200 N/mm².

Advantage
  • Ideal for long service life requirements and materials that are difficult to machine, such as stainless steel
  • Innovative cutting geometry ensures high process reliability even under difficult machining conditions


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M12
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 110,00 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 1,75 mm
Twist angle: 45° (right)
DIN: 376
Shank diameter: 9 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 10,20 mm
Type: UNI MAX 45 Control
Coolant supply: External
Shank square: 7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 2
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10487267

EAN no.: 4050293651294

Product Datasheet Datasheet cutting values
