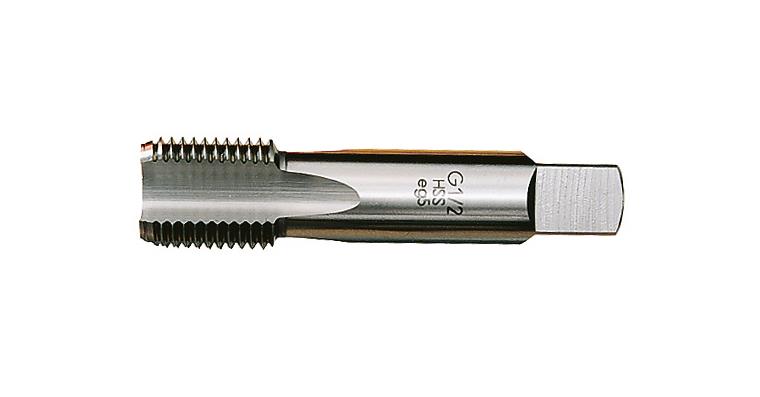

Hand tap DIN 5157 F third tap HSS G 3/8

Hand tap DIN 5157 F third tap HSS G 3/8

Hand tap DIN 5157 F third tap HSS G 3/8
Item no: 1014069 203

Online price:

Still in stock: 6

Application
For the production of cylindrical Whitworth pipe threads DIN ISO 228 (formerly DIN 259). For unalloyed and low-alloy steels up to 900 N/mm² strength.

Execution
  • Third tap with chamfer shape C without ring
  • Right-cutting
  • Straight-grooved
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter in inches: G 3/8 in
Core hole diameter: 15,25 mm
Length: 70 mm
Shank diameter: 12 mm
Shank square: 9 mm
Colour ring system: Steels
Design: Third tap
Shank style: Cylindrical with square drive
Thread type: Pipe thread
Lead angle shape: C
DIN: 5157
Cutting material: HSS
Cutting direction: Right-hand cutting
Hole type: Clearance hole ≤ 3xD
Surface: Plain
Tolerance of screw taps: 6H
Nominal diameter in inches: 3/8 in
Number of thread starts per inch: 19
Twist angle: 0°

EAN no.: 4024496019700

Product Datasheet
