Hand tap DIN 352 no. 1 taper tap HSS M4

Hand tap DIN 352 no. 1 taper tap HSS M4

Hand tap DIN 352 no. 1 taper tap HSS M4
Item no: 1014018 112

Online price:

Still in stock: 9

Application
For production of standard ISO DIN 13 metric threads. For unalloyed and low-alloy steels up to 800 N/mm² strength.

Execution
  • Taper tap with chamfer shape A with one ring
  • Right-cutting
  • Straight-grooved
  • Up to M 1.4 tolerance field ISO 1 (4H)
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter: M4
Pitch: 0,7 mm
Core hole diameter: 3,30 mm
Length: 45 mm
Shank diameter: 4,5 mm
Shank square: 3,4 mm
Colour ring system: Steels
Design: Taper tap
Shank style: Cylindrical with square drive
Thread type: Metric thread
Lead angle shape: A
DIN: 352
Cutting material: HSS
Cutting direction: Right-hand cutting
Hole type: Clearance hole ≤ 2xD
Coolant supply: External
Surface: Uncoated
Tolerance of screw taps: 6H
Nominal diameter: 4 mm
Twist angle: 0°

EAN no.: 4024496016211

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Hand tap DIN 352 no. 1 taper tap HSS M1
  •
    Hand tap DIN 352 no. 1 taper tap HSS M3
  •
    Hand tap DIN 352 no. 1 taper tap HSS M3.5
  •
    Hand tap DIN 352 no. 1 taper tap HSS M5
  •
    Hand tap DIN 352 no. 1 taper tap HSS M6
  •
    Hand tap DIN 352 no. 1 taper tap HSS M7
  •
    ATORN cylindrical WK holder D=10.0 x 111 mm, SC X-long, WK size 20 HA shaft
  •

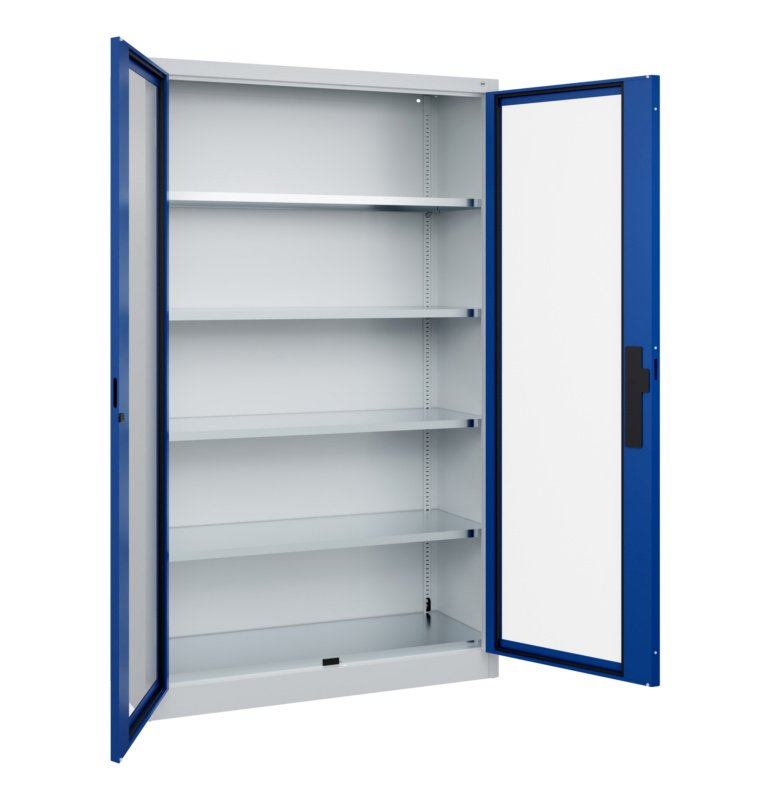

    Flügeltür-Werkzeugschrank Acurado, Sichtfenstertüren, 1950x930x400mm 7035/5012
  •

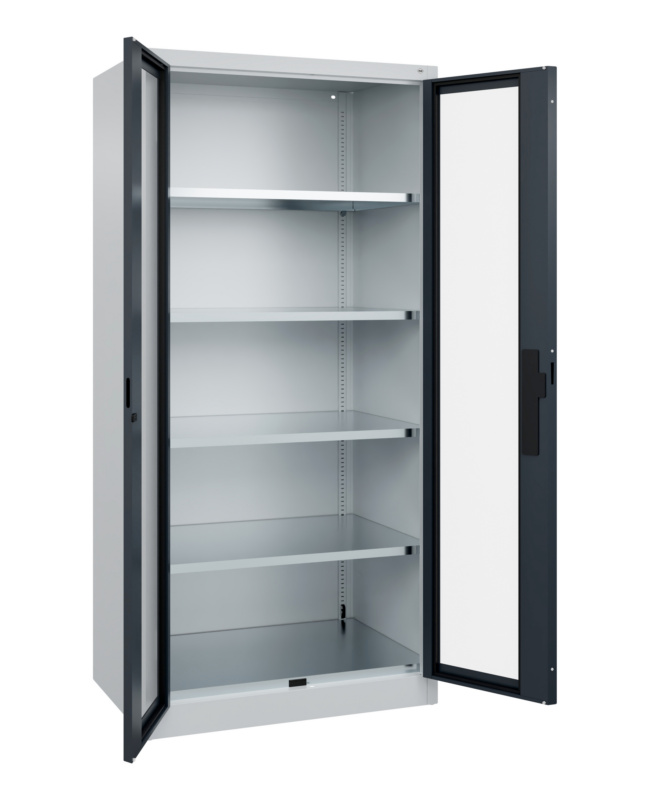

    Flügeltür-Werkzeugschrank Acurado, Sichtfenstertüren, 1950x930x600mm 7035/7016
  •
