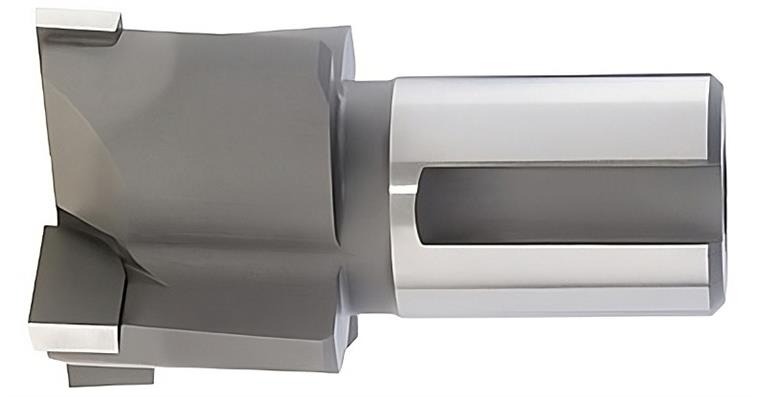

Flachsenker ZS 180° Typ U HM Z3 1/25,5

Flachsenker ZS 180° Typ U HM Z3 1/25,5

Flachsenker ZS 180° Typ U HM Z3 1/25,5
Item no: 1012512 224

Online price:

Available in 7-9 working days.

Application
For countersinking screws according to DIN and for producing stepped bore holes and countersinks outside the standard.

Execution
  • With straight shank for mounting in holder with art. no. 1012518 103-104 and 108
  • For replaceable pilots art. no. 1012515 301-319 and 1012516 101-132

Notes
Good cooling is extremely important.
The cutting speed must not be set too low, otherwise there is a risk of breakage.

Brand: GFS
Material to be processed: Universal use
Cutting edge diameter: 25,5 mm
Cutting material: Carbide
Surface: Uncoated
Cutting edge length: 22 mm
Length: 50 mm
Construction size: 1
Countersink angle: 180 Degree
Tool holding device: Cylinder shank

Manufacturer part no.: 16812255

EAN no.: 4033591013124

Datasheet cutting values
Additional articles

Please select a button.

Required accessories
Versions
loading
Keywords:

[Text nicht gefunden]

  • Flachsenker ZS 180° Typ U HM Z3 1/28,0
    196,40 €
  • ATORN RockTec PRO end mill, standard 20x38x52x104 mm T=4 HA
    249,92 €
  • Carbide cut. insert MINI-MILL Z22.0315.02 AL 41F/TiAlN f holder ZH22 art. 17580
    44,18 €
  • Carbide cut. insert MINI-MILL Z22.2215.35 AL 41F/TiAlN f holder ZH22 art. 17580
    47,56 €
  • Carbide cut. insert MINI-MILL Z22.4120.55 AL 41F/TiAlN f holder ZH22 art. 17580
    47,56 €
  • Thread go plug gauge Whitworth pipe thread DIN ISO 228 thread 1 1/2 inch
    140,70 €
  • Thread go ring gauge Whitworth pipe thread DIN ISO 228 G 1.1/2 inch
    279,72 €

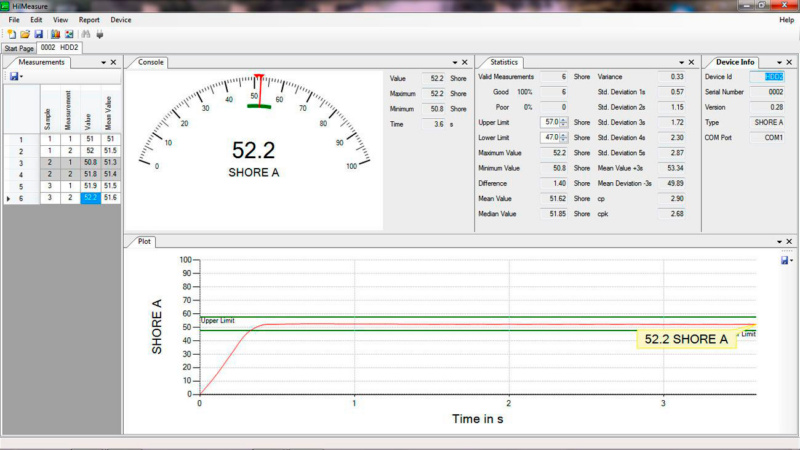

  • HiMeasure softw. auto. device recognition, analogue/digital measurement display
    506,00 €
  • 1/2 inch hexagon socket DIN 3124 31CrV3 AF 18 mm
    8,63 €
  • Tube bending device RB 30 round bending 10x50 sharp. 6x50
    1.250,00 €

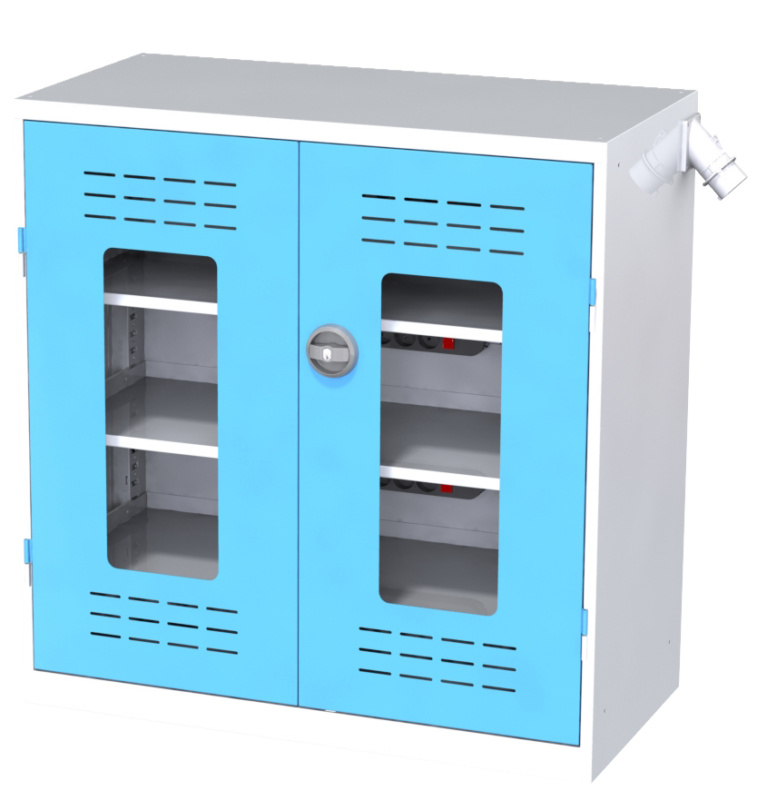

  • Battery cabinet 1030x500x500 mm, doors with viewing window, RAL 7035/5012
