ATORN solid carbide drill UNI TiAlNplus 5xD with IC 5.5 mm straight shank HB

Versions

Item no: 1011164 358

Online price:

Catalogue price: You save:

Available for immediate delivery

Min. order quantity: 1

Application
for HPC boring up to a strength of 1300 N/mm²

Execution

solid carbide TiAlNplus high-performance drill
2 drill heels
Cone polished section
30° spiral angle
Straight main cutting edge

Advantage

Economic drilling in a wide variety of materials with high cutting values
Newly developed geometry in conjunction with a multi-layer coating individually tailored to drilling ensures significantly longer service lives
Cutting edge finishing reduces micro-fractures and increases the service life

Brand: ATORN
Material to be processed: Universal use
Cutting edge diameter: 5,5 mm
Tolerance of cutting edge diameter: h7
Cutting material: SC
Surface: TiAlN plus
Max. drilling depth (D): 5xD
Type: HPC UNI
Coolant supply: Internal
Tool holding device: HB parallel shank
Angle of the tip: 140 Degree
Shank diameter: 6 mm
Chip flute length: 44 mm
Length: 82 mm
f steel 1000: 0,16 mm/r
DIN: 6537

ATORN-No.: 10915099

EAN no.: 4050293526615

Product Datasheet Datasheet cutting values

Versions

Keywords:

[Text nicht gefunden]

ATORN M3-M12 screw tap set + core hole drill bits M3-M12 TH/BH 2.5xD 40° P
ATORN shell end mill, PM, type N, uncoated, Ø 100.0 x 50 x 32 mm
ATORN indexable insert SNMX1206ANN- MM HC4535
Adjustable tap wrench all-steel size 1 for M 1–10, similar to DIN 1814

14,58 €
Adjustable tap wrench all-steel size 2 for M 4–12, similar to DIN 1814

25,27 €

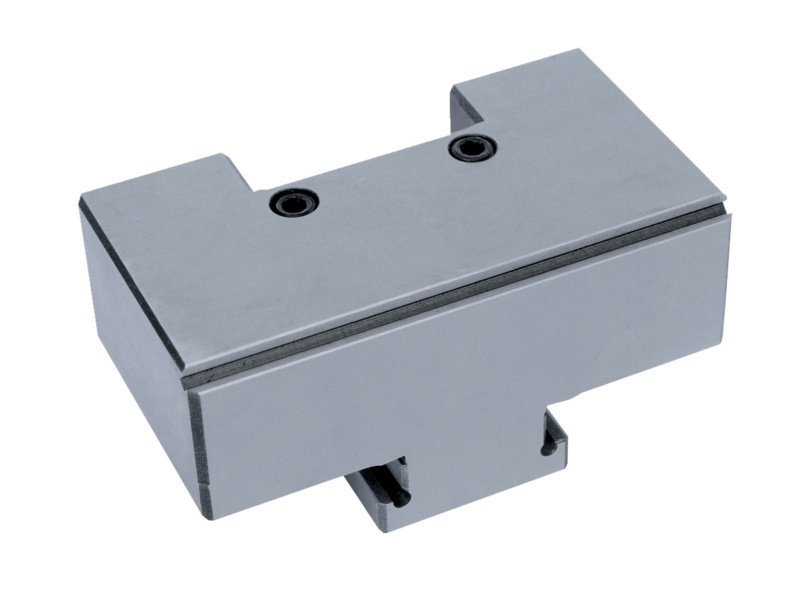

Stepped jaws for vices type MSR, for movable jaw, BB 150 mm, for cat. 27629

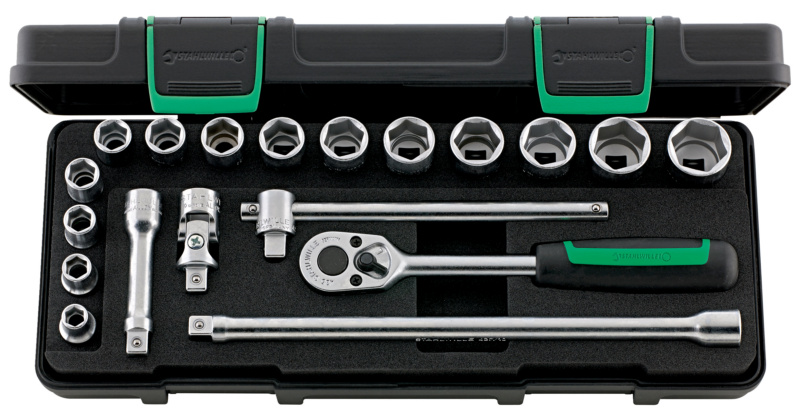

3/8 inch hex socket set 19 pieces AF 8-22 mm in ABS plastic box
