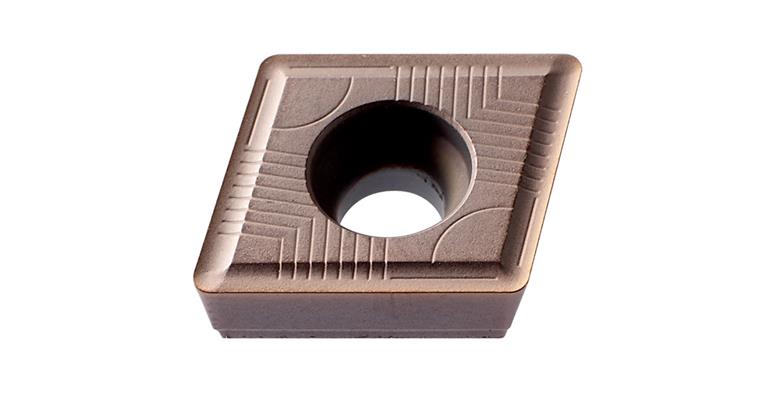

LIZZARD Wendeplatten SDX XPMT 125812-G P300

LIZZARD Wendeplatten SDX XPMT 125812-G P300

LIZZARD Wendeplatten SDX XPMT 125812-G P300
Item no: 1011160 405

Online price:

Available in 5-7 working days.

Application
High level of process reliability for applications such as boring, spotfacing, external turning and internal boring.

Execution
  • 4 effective cutting edges per indexable insert
  • Same indexable insert can be used as centre insert and peripheral insert

Advantage
  • Wide range of applications in structural steel and stainless steels
  • Optimised chip space geometry and cutting edge positions for stable drilling


Brand: LIZZARD
ISO name: XPMT 125812
Surface: TiAlN
Cutting material: SC
Suitable for min./max. cutting diameter: 37-45 mm
Number of cutting edges: 4 PCS
Inner circle diameter (IC): 12,4 mm
Cutting edge length (L): 13,6 mm
Mounting bore diameter (D1): 7,5 mm
Corner radius (RE): 1,2 mm
Thickness of indexable insert (S): 6,0 mm
Carbide type: HCU25D
Coating: TiAlN
Materials group: M (primary application) | P (primary application) | K (primary application)
Carbide type area ISO: K | P | M
Carbide type ISO: P10 | P30 | M20 | M35 | K10 | K30
Min./max. Vc in steel: 150-200 m/min
Min./max. f in steel: 0.06-0.15 mm/U
Min./max. Vc in stainless steel: 140-190 m/min
Min./max. f in stainless steel: 0.06-0.15 mm/U
Min./max. Vc in cast iron: 180-230 m/min
Min./max. f in cast iron: 0.06-0.2 mm/U
Number of pieces per packet: 10 PCS

EAN no.: 4024496168262

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • LIZZARD Wendeplatten SDX XPMT 052804-G P300
  •
    LIZZARD Wendeplatten SDX XPMT 094508-G P300
  •
    LIZZARD Wendeplatten SDX XPMT 156812-G P300
  •
    ATORN solid carbide mini end mill diameter 1.0 x 1.5 x 6.0 x 50 mm, HA shaft
  •
    Knurling wheel DIN 403 PM type AA dia. x width x hole 20x8x6 mm pitch 1.2 mm
  •
    1/4 inch bi-hexagon socket long dynamic drive profile AF 1/4 inch
  •
    3/8 inch bi-hexagon socket long, dynamic drive profile AF 3/8 inch
  •
    Torque interch. blade 4 mm hex. f. torque screwdr. 55500-504 hex skt WAF 2
  •
    Torque interch. blade 4 mm hex. f. torque screwdr. 55500-504 hex skt WAF 3
  •
    Machine shoe diameter 200 mm level compensation 25 mm load/shoe max. 5,500 kg
  •

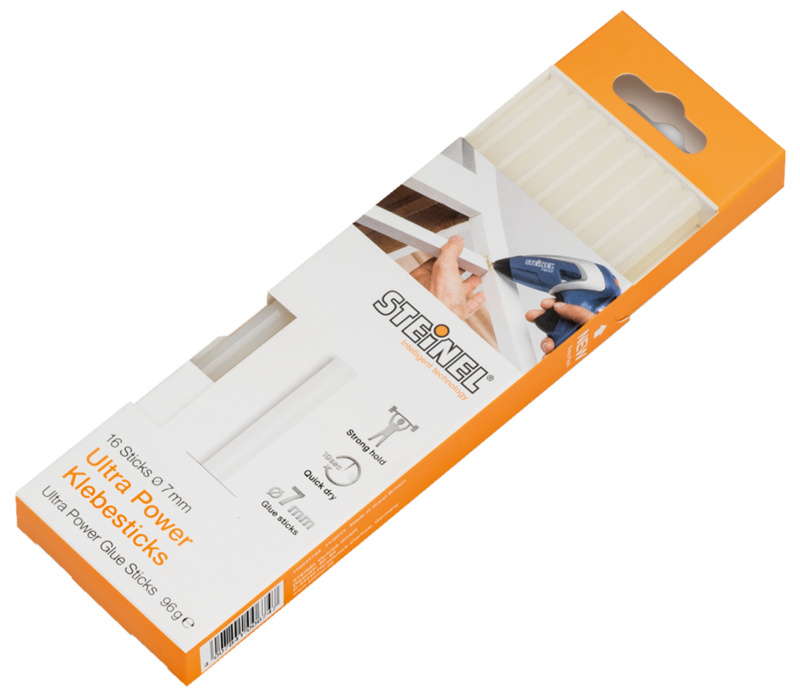

    Glue sticks crystal-clear dia. 7 mm for cordl. hot glue gun cat. no. 92302 102
  •
