SC flat drill bit 180° AQUA DRILL EX Flat 3xD with cooling channel dia. 8.0 mm

SC flat drill bit 180° AQUA DRILL EX Flat 3xD with cooling channel dia. 8.0 mm

SC flat drill bit 180° AQUA DRILL EX Flat 3xD with cooling channel dia. 8.0 mm
Item no: 1011104 100

Online price:

Available in 6-8 working days.

Application
For high precision drilling with flat base up to 48 HRC. Direct drilling without guide hole. Tilted drilling, countersinking, thin sheet metals and blind holes - all with one tool. Suitable for cross-drilled holes. Drilling with reduced burr.

Execution
  • Right-cutting
  • Helix angle 24°~30°
  • Flat drill bit 180°
  • 2 cutting edges
  • Cooling channel bores
  • Double drill heel
  • AQUA EX coating guarantees long service life through higher temperature and wear resistance (TiAlN multi-layer coating)

Notes
When drilling inclined surfaces, the rotation speed and feed rate must be adapted! See cutting data. Use only high-precision tool chucks.

Brand: NACHI
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN multilayer coating
Max. drilling depth (D): 3xD
Angle of the tip: 180 Degree
Coolant supply: Internal
Tool holding device: HA parallel shank
Cutting edge diameter: 8 mm
Shank diameter: 8 mm
Chip flute length: 37 mm
Length: 94 mm
f steel 1000: 0,140 mm/r
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
Tolerance of cutting edge diameter: h7
Tolerance of shank diameter: h6

Manufacturer part no.: L9812 8,0

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Solid carbide flat drill bit 180° AQUA Drill EX Flat 2xD long shank dia. 6.2 mm
  •
    Solid carbide flat drill bit 180° AQUA Drill EX Flat 2xD long shank dia. 6.4 mm
    152,76 €
  • Solid carbide flat drill bit 180° AQUA Drill EX Flat 2xD long shank dia. 8.5 mm
  •
    SC flat drill bit 180° AQUA DRILL EX Flat 3xD with cooling channel dia. 2.3 mm
  •
    SC flat drill bit 180° AQUA DRILL EX Flat 3xD with cooling channel dia. 2.5 mm
    108,68 €
  • SC flat drill bit 180° AQUA DRILL EX Flat 3xD with cooling channel dia. 4.3 mm
  •
    SC flat drill bit 180° AQUA DRILL EX Flat 3xD with cooling channel dia. 5.8 mm
  •
    SC flat drill bit 180° AQUA Drill EX Flat 5xD with cooling channel dia. 6.9 mm
  •
    SC flat drill bit 180° AQUA Drill EX Flat 5xD with cooling channel dia. 8.1 mm
  •
    SC flat drill bit 180° AQUA Drill EX Flat 5xD with cooling channel dia. 9.6 mm
  •
    ATORN die HSS EN 22568 MF20 x 1 6g outer diameter 45 mm
    88,40 €

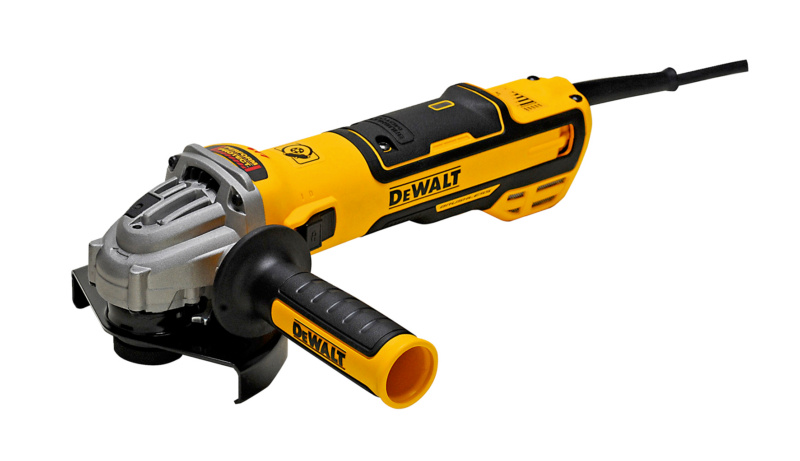

  • DWE 4369-QS angle grinder dia. 125 mm 1,700 W, BL motor, elect. speed control
