ATORN 180° high-performance drill, SC TiAlN, 5xD 7.2 mm x 8 mm x 91 mm

Versions

Item no: 1011100 151

Online price:

Catalogue price: You save:

Available in 4-6 working days.

Min. order quantity: 1

Application
For producing drill holes with a 180° hole base in one operation

Execution
Heavy-duty solid carbide drill with 180° precision grinding and drill heels

Advantage

drilling and counterboring in a single work step at high cutting speed
Innovative geometry ensures good chip removal

Notes
The maximum permissible inclination of the drilling surface is 15° correction factor = 0.25
For spot drilling, multiply feed f [mm/U] by correction factor Kf

Spot drill with reduced feed until the tool cuts to 0.25xD over the total ø

For angled spot drilling: Retract at double feed rate f [mm/U]

After spot drilling at reduced feed rate (correction factor), drilling continues at feed rate f [mm/U] according to recommended cutting data without correction factors

Setting a pilot hole is recommended for drilling on flat surfaces.

Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Max. drilling depth (D): 5xD
Angle of the tip: 180 Degree
Coolant supply: Internal
Tool holding device: HA parallel shank
Cutting edge diameter: 7,2 mm
Shank diameter: 8 mm
Chip flute length: 53 mm
Length: 91 mm
f steel 1000: 0,13 mm/r
Edge protection chamfer length: 0,36 mm

ATORN-No.: 12040515

EAN no.: 4050293447446

Product Datasheet Datasheet cutting values

Versions

Keywords:

[Text nicht gefunden]

ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°

1,80 €
ATORN 180° high-performance drill, SC TiAlN, 5xD 5.3 mm x 6 mm x 82 mm
ATORN 180° high-performance drill, SC TiAlN, 5xD 6.1 mm x 8 mm x 91 mm
ATORN 180° high-performance drill, SC TiAlN, 5xD 6.9 mm x 8 mm x 91 mm
Pull-out shelf V 80 with guide rails 600x600 mm for cat. 84390 RAL 7035
Pull-out shelf V 200 with guide rails 600x600 mm for cat. 84390 RAL 7035

212,52 €

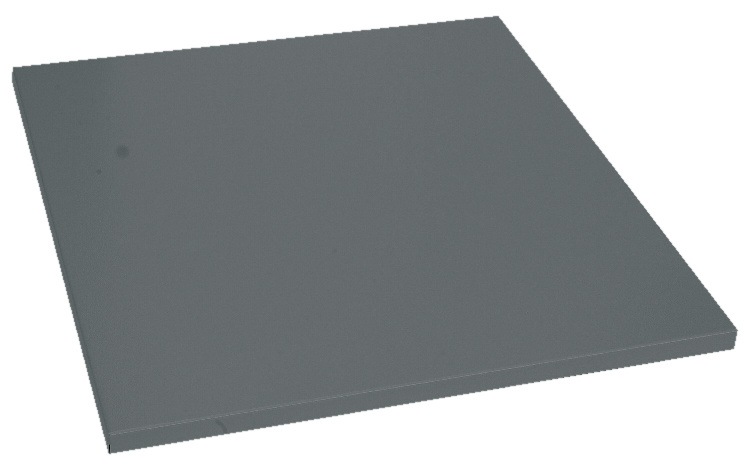

Shelf, sheet steel, 600x600 mm RAL 7035 for cat. 84390
