ATORN 180° high-performance drill, SC TiAlN, 5xD 4.9 mm x 6 mm x 82 mm

ATORN 180° high-performance drill, SC TiAlN, 5xD 4.9 mm x 6 mm x 82 mm

ATORN 180° high-performance drill, SC TiAlN, 5xD 4.9 mm x 6 mm x 82 mm
Item no: 1011100 127

Online price:

Available in 4-6 working days.

Application
For producing drill holes with a 180° hole base in one operation

Execution
Heavy-duty solid carbide drill with 180° precision grinding and drill heels

Advantage
  • drilling and counterboring in a single work step at high cutting speed
  • Innovative geometry ensures good chip removal

Notes
The maximum permissible inclination of the drilling surface is 15° correction factor = 0.25
For spot drilling, multiply feed f [mm/U] by correction factor Kf
  • Spot drill with reduced feed until the tool cuts to 0.25xD over the total ø

  • For angled spot drilling: Retract at double feed rate f [mm/U]

  • After spot drilling at reduced feed rate (correction factor), drilling continues at feed rate f [mm/U] according to recommended cutting data without correction factors

  • Setting a pilot hole is recommended for drilling on flat surfaces.


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Max. drilling depth (D): 5xD
Angle of the tip: 180 Degree
Coolant supply: Internal
Tool holding device: HA parallel shank
Cutting edge diameter: 4,9 mm
Shank diameter: 6 mm
Chip flute length: 44 mm
Length: 82 mm
f steel 1000: 0,08 mm/r
Edge protection chamfer length: 0,25 mm

ATORN-No.: 12040491

EAN no.: 4050293447200

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN 180° high-performance drill, SC TiAlN, 5xD 4.1 mm x 6 mm x 74 mm
  •
    ATORN 180° high-performance drill, SC TiAlN, 5xD 4.2 mm x 6 mm x 74 mm
  •
    ATORN 180° high-performance drill, SC TiAlN, 5xD 4.4 mm x 6 mm x 74 mm
    92,88 €
  • ATORN 180° high-performance drill, SC TiAlN, 5xD 5.2 mm x 6 mm x 82 mm
  •
    ATORN 180° high-performance drill, SC TiAlN, 5xD 5.8 mm x 6 mm x 82 mm
  •
    ATORN 180° high-performance drill, SC TiAlN, 5xD 5.9 mm x 6 mm x 82 mm
    92,88 €
  • ATORN 180° high-performance drill, SC TiAlN, 5xD 7.1 mm x 8 mm x 91 mm
  •
    ATORN 180° high-performance drill, SC TiAlN, 5xD 7.5 mm x 8 mm x 91 mm
    104,56 €
  • ATORN 180° high-performance drill, SC TiAlN, 5xD 7.7 mm x 8 mm x 91 mm
  •
    ATORN TC hammer drill bit value pack, 10+1, T=4, 8.0x160x100 mm
  •
    BAHCO electronic torque wrench, 20-200 Nm, 1/2" ratchet
  •

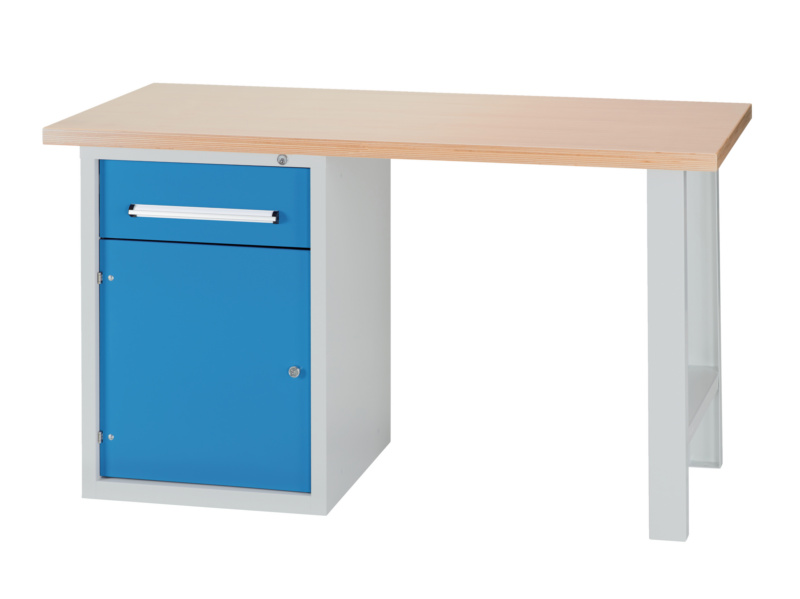

    Combination workbench series DB W1500xD750xH840mm RAL7035/5012 1xdoor 1xdrawer
