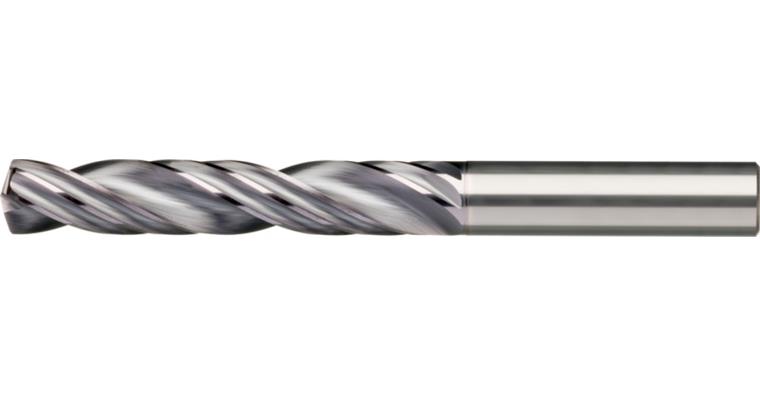

ATORN high-performance drill reamer, SC TiAlN, 5xD 4.0 mm x 6 mm x 74 mm

ATORN high-performance drill reamer, SC TiAlN, 5xD 4.0 mm x 6 mm x 74 mm

ATORN high-performance drill reamer, SC TiAlN, 5xD 4.0 mm x 6 mm x 74 mm
Item no: 1011090 093

Online price:

Available in 6-8 working days.

Application
For producing H7 drill holes in a single action for universal application up to 1300 N/mm².

Execution
high-performance drill reamer with 6 drill heels

Advantage
  • drilling and reaming in H7 quality in a single work step at a high cutting speed
  • innovative geometry for productively and reliably machining holes in H7 quality


Brand: ATORN
Material to be processed: Steel | Cast metal
Cutting material: SC
Surface: TiAlN
Max. drilling depth (D): 5xD
Angle of the tip: 140 Degree
Coolant supply: Internal
Tool holding device: HA parallel shank
Cutting edge diameter: 4 mm
Shank diameter: 6 mm
Chip flute length: 36 mm
Length: 74 mm
f steel 1000: 0,14 mm/r
DIN: 6537

ATORN-No.: 12040463

EAN no.: 4050293446920

Product Datasheet Datasheet cutting values
