ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 18.5 mm

ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 18.5 mm

ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 18.5 mm
Item no: 1011089 185

Online price:

Available in 8-10 working days.

Application
For HPC drilling in non-ferrous metals

Execution
  • SC ULTRA N PRO high-performance drill bit
  • 2 margins
  • 4-facet point
  • 30° spiral angle
  • Straight main cutting edge
  • Polished chip grooves
  • Specially prepared cutting edges

Advantage
  • Perfect chip breaking due to the sharp, specially prepared cutting edges
  • The specially designed ULTRA N PRO coating prevents built-up edges
  • Very good chip removal even in the case of long-chipping material due to the large and polished chip grooves
  • Excellent drilled hole quality due to low friction coefficient


Brand: ATORN
Material to be processed: Aluminium
Cutting edge diameter: 18,5 mm
Tolerance of cutting edge diameter: m7
Cutting material: SC
Surface: ULTRA N PRO
Max. drilling depth (D): 5xD
Type: HPC ALU
Coolant supply: Internal
Tool holding device: HA parallel shank
Angle of the tip: 130 Degree
Shank diameter: 20 mm
Chip flute length: 101 mm
Length: 153 mm
f aluminium: 0,58 mm/r

ATORN-No.: 11869592

EAN no.: 4066107042035

Datasheet cutting values
Additional articles

Please select a button.

Similar product
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 10.5 mm
  •
    ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 11.5 mm
  •
    ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 14.0 mm
  •
    ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 16.5 mm
  •
    ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 17.5 mm
  •
    ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 19.0 mm
    282,20 €
  • ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 20.0 mm
  •
    Through hole screw tap M Synchro DIN 371 shape B 2xD HSS-E-PM-TiCN M6
  •

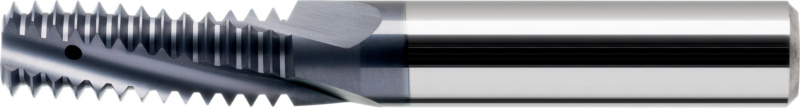

    ATORN thread milling cutter SC-TIAlN IC 2 mm 10.0 mm 27 mm
  •
