ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 5.7 mm

ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 5.7 mm

ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 5.7 mm
Item no: 1011089 057

Online price:

Available in 8-10 working days.

Application
For HPC drilling in non-ferrous metals

Execution
  • SC ULTRA N PRO high-performance drill bit
  • 2 margins
  • 4-facet point
  • 30° spiral angle
  • Straight main cutting edge
  • Polished chip grooves
  • Specially prepared cutting edges

Advantage
  • Perfect chip breaking due to the sharp, specially prepared cutting edges
  • The specially designed ULTRA N PRO coating prevents built-up edges
  • Very good chip removal even in the case of long-chipping material due to the large and polished chip grooves
  • Excellent drilled hole quality due to low friction coefficient


Brand: ATORN
Material to be processed: Aluminium
Cutting edge diameter: 5,7 mm
Tolerance of cutting edge diameter: m7
Cutting material: SC
Surface: ULTRA N PRO
Max. drilling depth (D): 5xD
Type: HPC ALU
Coolant supply: Internal
Tool holding device: HA parallel shank
Angle of the tip: 130 Degree
Shank diameter: 6 mm
Chip flute length: 44 mm
Length: 82 mm
f aluminium: 0,25 mm/r

ATORN-No.: 11869519

EAN no.: 4066107041304

Datasheet cutting values
Additional articles

Please select a button.

Similar product
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 2.7 mm
  •
    ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 3.0 mm
  •
    ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 5.6 mm
  •
    ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 6.0 mm
  •
    ATORN SC drill bit type NE ULTRA N PRO 5xD with internal cooling dia. 6.8 mm
  •
    SC twist drill bit AquaREVO 3xD w/ internal cooling DIN 6535 HA dia. 4.8 mm
  •
    SC twist drill bit AquaREVO 3xD w/ internal cooling DIN 6535 HA dia. 6.7 mm
  •
    SC twist drill bit AquaREVO 3xD w/ internal cooling DIN 6535 HA dia. 7.9 mm
  •
    NACHi solid carbide Aqua REVO DRILL DIN with cooling channel 8D diameter 4.8MM
  •
    NACHi solid carbide Aqua REVO DRILL DIN with cooling channel 8D diameter 5.9MM
  •
    Microjet min. qty lubrication system (MMS) 230V dir. assembly on the machine
  •

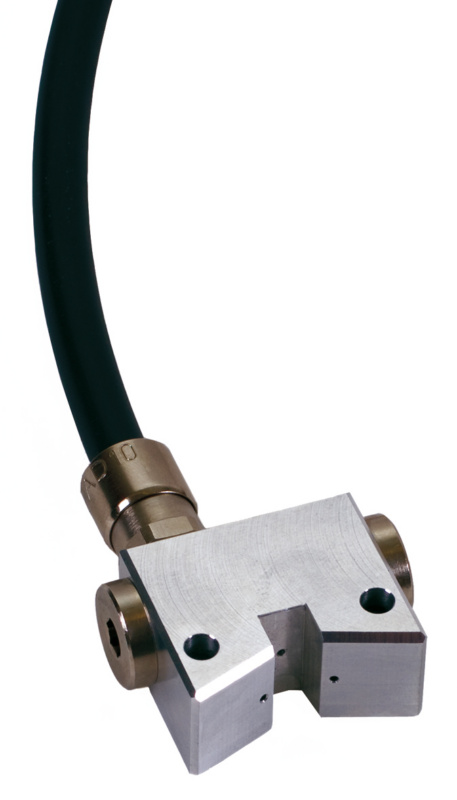

    Spraying unit for bandsaw blades of 27-34 mm belt height
