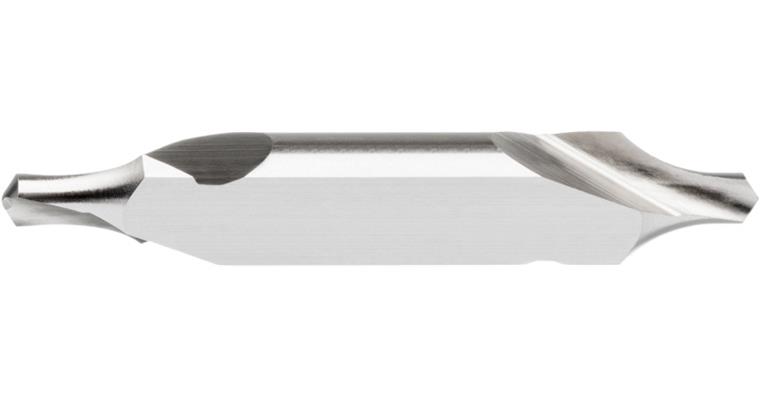

ATORN centre drill with radius HSS-E form R w. surface 3.15 mm x 8 mm x 50 mm

ATORN centre drill with radius HSS-E form R w. surface 3.15 mm x 8 mm x 50 mm

ATORN centre drill with radius HSS-E form R w. surface 3.15 mm x 8 mm x 50 mm
Item no: 1010875 212

Online price:

Still in stock: 3

Application
For centre drilling on conventional and CNC machines.

Execution
spiral-fluted design with relief grinding

Advantage
  • radius compensates for positioning inaccuracies and angle errors (sufficient bearing surface present even with offset lathe centre)
  • radial relief ensures optimum chip breaking
  • Face ensures good accessibility

Notes
For making centring holes in accordance with DIN 332

Brand: ATORN
Material to be processed: Universal use
Countersink angle: 60 Degree
Cutting material: HSSE
Surface: Uncoated
Form: R
Tool holding device: HA parallel shank
Cutting edge diameter: 3,15 mm
Shank diameter: 8,00 mm
Min./max cutting edge length: 8-8.5 mm
Length: 50 mm
Radius: 8 mm
f steel 700: 0,05 mm/r
DIN: 333

ATORN-No.: 10440593

EAN no.: 4050293415131

Product Datasheet Datasheet cutting values
