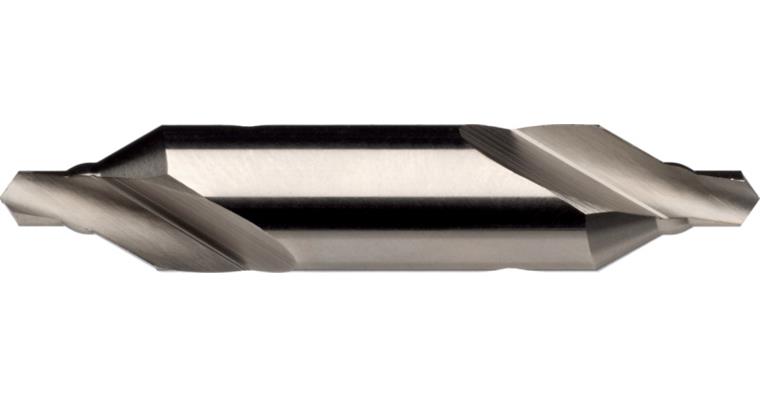

ATORN centre drill with bulge, HSS form W 1.6 mm x 4 mm x 30.3 mm

ATORN centre drill with bulge, HSS form W 1.6 mm x 4 mm x 30.3 mm

ATORN centre drill with bulge, HSS form W 1.6 mm x 4 mm x 30.3 mm
Item no: 1010874 106

Online price:

Available for immediate delivery

Application
For centre drilling on conventional and CNC machines.

Execution
spiral-fluted design with relief grinding

Advantage
  • Bulge ensures additional room for lubricant
  • radial relief ensures optimum chip breaking

Notes
For making centring holes in accordance with DIN 332

Brand: ATORN
Material to be processed: Universal use
Countersink angle: 60 Degree
Cutting material: HSS
Surface: Uncoated
Form: W
Tool holding device: HA parallel shank
Cutting edge diameter: 1,6 mm
Shank diameter: 4 mm
Min./max cutting edge length: 2-2.4 mm
Length: 30,3 mm
f steel 700: 0,03 mm/r
DIN: 333

ATORN-No.: 10440042

EAN no.: 4050293012088

Product Datasheet Datasheet cutting values
