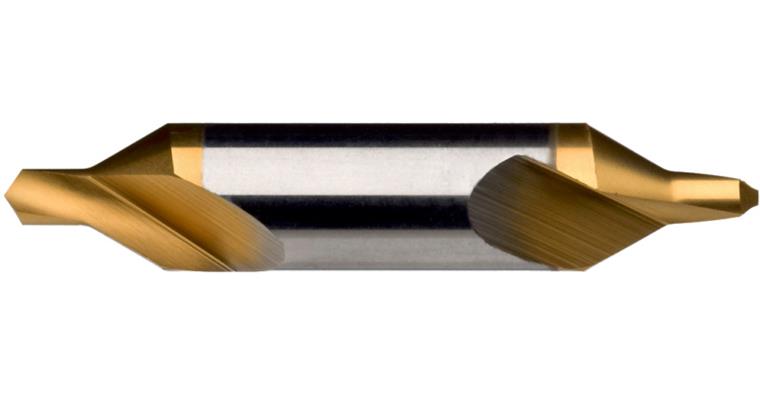

ATORN centre drill HSSE TiN form A 1.25 mm x 3.15 mm x 31.5 mm

ATORN centre drill HSSE TiN form A 1.25 mm x 3.15 mm x 31.5 mm

ATORN centre drill HSSE TiN form A 1.25 mm x 3.15 mm x 31.5 mm
Item no: 1010871 205

Online price:

Available for immediate delivery

Application
For centre drilling on conventional and CNC machines.

Execution
spiral-fluted design with relief grinding. diameter 0.5–0.8, ground on one side

Advantage
  • radial relief ensures optimum chip breaking
  • TiN coating ensures long service life

Notes
For making centring holes in accordance with DIN 332

Brand: ATORN
Material to be processed: Universal use
Countersink angle: 60 Degree
Cutting material: HSSE
Surface: TiN
Form: A
Tool holding device: HA parallel shank
Cutting edge diameter: 1,25 mm
Shank diameter: 3,15 mm
Min./max cutting edge length: 1.6-1.9 mm
Length: 31,5 mm
f steel 1000: 0,02 mm/r
DIN: 333

ATORN-No.: 10440032

EAN no.: 4050293011982

Product Datasheet Datasheet cutting values
