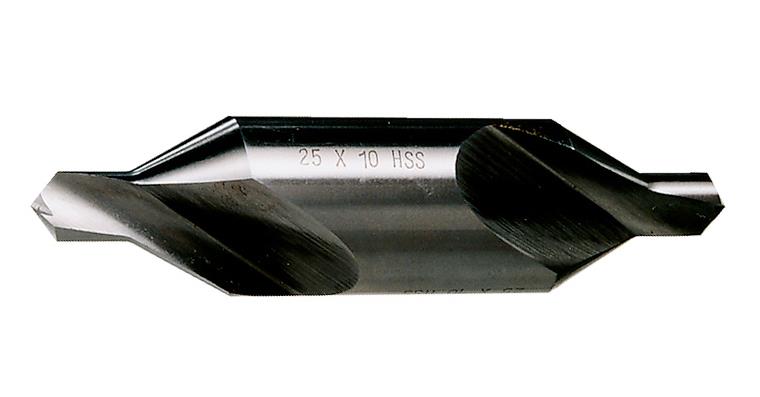

Centre drill bit DIN 333 shape A 60° HSS 10.00 mm

Centre drill bit DIN 333 shape A 60° HSS 10.00 mm

Centre drill bit DIN 333 shape A 60° HSS 10.00 mm
Item no: 1010869 118

Online price:

Still in stock: 5

Application
For centre drilling on conventional and CNC machines.

Execution
Spiral-fluted design with relief grinding. Diameter 0.5-0.8, ground on one side

Advantage
Radial relief ensures optimum chip breaking


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 10 mm
Shank diameter: 25,00 mm
Min./max cutting edge length: 12.8-13.8 mm
Length: 100 mm
Form: A
Cutting material: HSS
Surface: Uncoated
Countersink angle: 60 Degree
Tool holding device: HA parallel shank
DIN: 333
Cutting speed (steel 700) Vc: 35,00 m/min
f steel 700: 0,08 mm/r
Cutting speed (steel 1000) Vc: 20,00 m/min
Cutting speed (steel 1300) Vc: 10,00 m/min
Cutting speed (aluminium short) Vc: 50,00 m/min
Cutting speed (aluminium long) Vc: 70,00 m/min
Cutting speed (cast) Vc: 20,00 m/min
Cutting speed (VA mar) Vc: 10,00 m/min
f titanium: 0,09 mm/r
Coolant supply: External
Cutting direction: Right-hand cutting
Max. cutting edge length: 13,8 mm
Min. cutting edge length: 12,8 mm
Number of cutting edges: 2
Tolerance of cutting edge diameter: h7
Angle of the tip: 118 Degree
Diameter 2: 25,00 mm
Min./max. f in cast iron: 0.20-0.25 mm/U
Min./max. f in non-ferrous metals: 0.25-0.25 mm/U
Min./max. f in steel: 0.20-0.25 mm/U

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN hand tap set HSS A/D/C 351 0° W5/8 ISO2 D/S 3xD
  •
    Carbide recessing lathe chisel DIN 4981/ISO 7 right M20 25 H
    15,36 €
  • Carbide recessing lathe chisel DIN 4981/ISO 7 right K20 25 H
  •
    Stud bolt DIN 6379 rolled thread M 12 x 125 mm
  •
    Stud bolt DIN 6379 rolled thread M 20 x 200 mm
  •
    Washer DIN 6340 21.0 mm for screw M20
  •
    Washer DIN 6340 28.0 mm for screw M 27
  •
    Washer DIN 6340 31.0 mm for screw M 30
  •

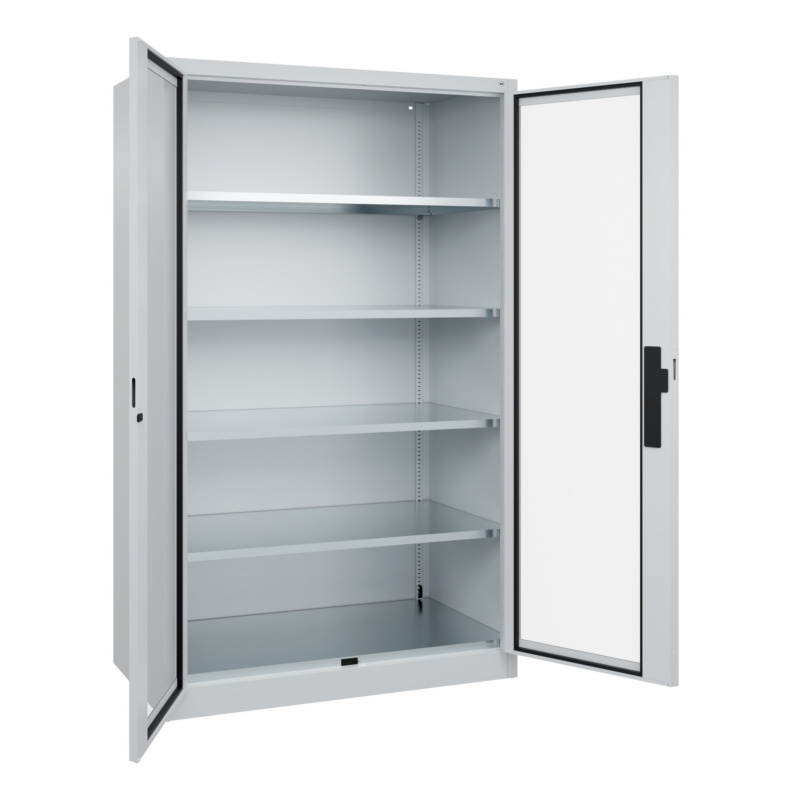

    Flügeltür-Werkzeugschrank Acurado, Sichtfenstertüren, 1950x1200x400mm 7035/7035
  •

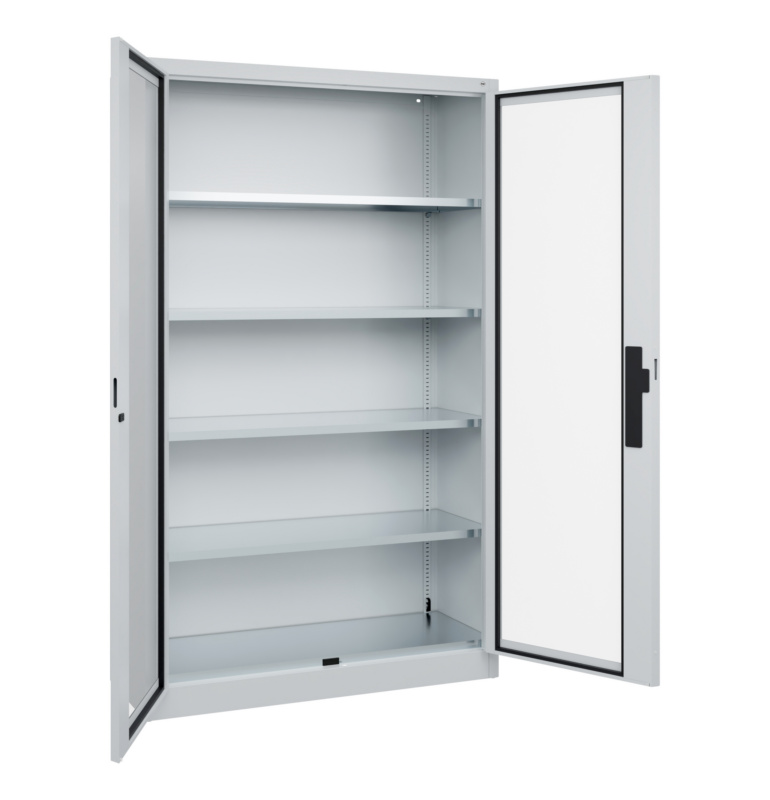

    Flügeltür-Werkzeugschrank Acurado, Sichtfenstertüren, 1950x1200x500mm 7035/7035
  •
