Multiplex HPC indexable insert SC/nanofire girder size 220 dia. 22.0 mm

Multiplex HPC indexable insert SC/nanofire girder size 220 dia. 22.0 mm

Multiplex HPC indexable insert SC/nanofire girder size 220 dia. 22.0 mm
Item no: 1010646 128

Online price:

Available for immediate delivery

Application
For Multiplex HPC holder art. no. 1010640-1010644.

Delivery
Incl. 1 clamping screw


Brand: HARTNER
Cutting material: SC
Surface: AlTiN
Angle of the tip: 140 Degree
Coolant supply: Internal
Cutting edge diameter: 22 mm
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
Height (h): 14,80 mm
Material to be processed: Steel
Max. Vc in steel: 100 m/min
Min. Vc in steel: 50 m/min
Min./max. Vc in steel: 50-100 m/min
Point height (l4): 4,10 mm
Size: 220
Suitable for material group P: 1
Thickness of cutting edge: 10,0 mm

Manufacturer part no.: 86722 22,000

EAN no.: 4031096232149

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill bit VA HSSE TiAlNplus DIN 338 diameter 2.2 mm
  •
    ATORN twist drill bit VA HSSE TiAlNplus DIN 338 diameter 7.2 mm
  •
    ATORN twist drill bit VA HSSE TiAlNplus DIN 338 diameter 13 mm
  •
    Multiplex HPC indexable insert SC/nanofire girder size 110 dia. 11.2 mm
  •
    Multiplex HPC indexable insert SC/nanofire girder size 145 dia. 14.8 mm
  •
    Multiplex HPC indexable insert SC/nanofire girder size 190 dia. 19.0 mm
  •
    Multiplex HPC indexable insert SC/nanofire girder size 310 dia. 31.0 mm
  •
    Multiplex indexable insert with chip breaker groove HSS-E-PM+TiN 13.50 mm
  •
    Schwerer gebogener 6kant Steckschlüssel ISO 2236 mit Bohrung SW 9 mm
  •

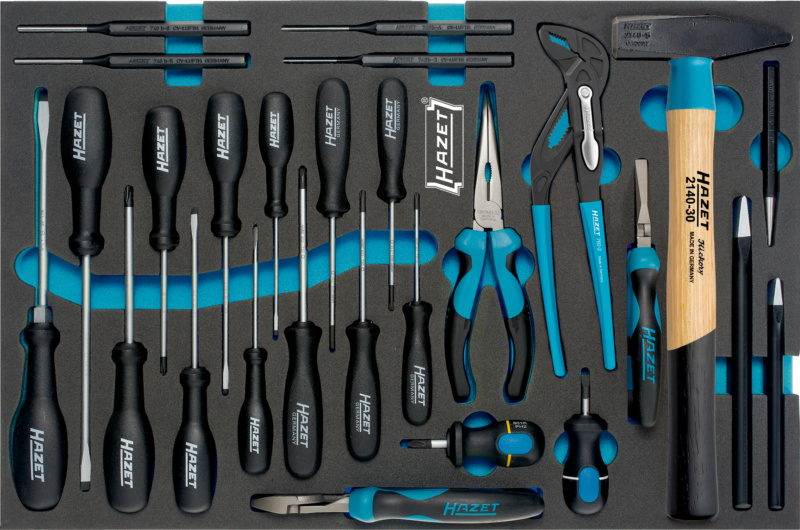

    Tool assortment, 27 pieces in 2-component soft foam insert
  •

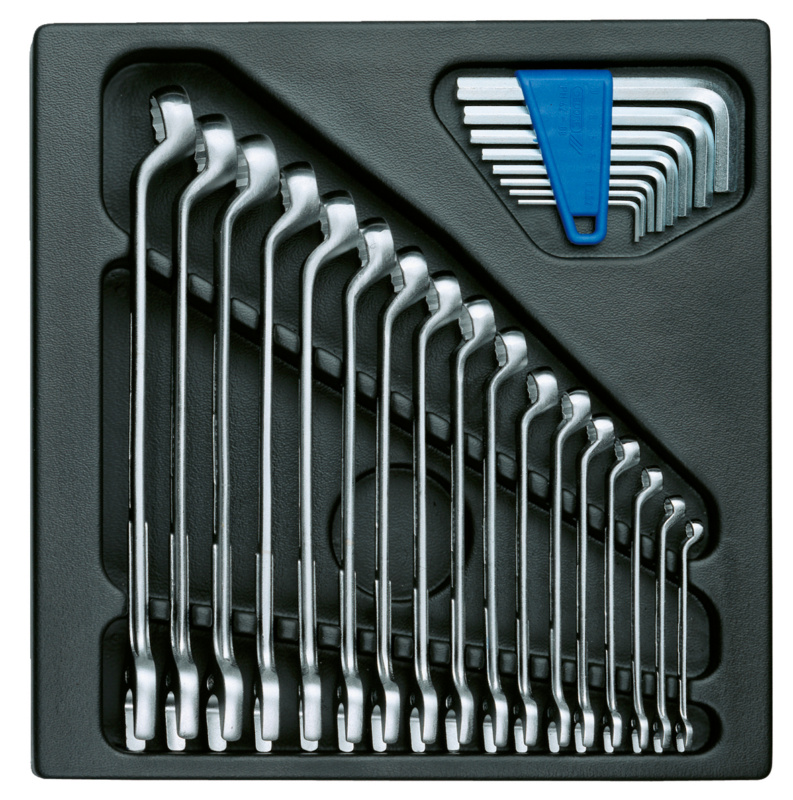

    Combination spanner set 25 pcs in 2/3 tool module, UD profile 10° chrome-plated
  •
