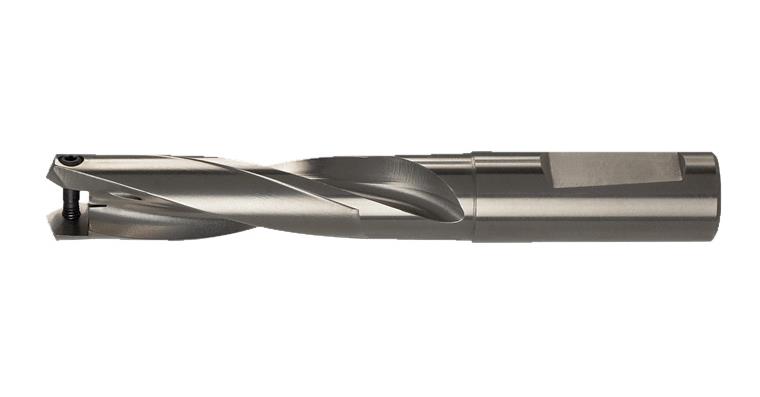

Multiplex HPC holder 3xD size 390 for drilling range dia. 39.00–40.00 mm

Multiplex HPC holder 3xD size 390 for drilling range dia. 39.00–40.00 mm

Multiplex HPC holder 3xD size 390 for drilling range dia. 39.00–40.00 mm
Item no: 1010641 149

Online price:

Available in 6-8 working days.

Execution
  • Long service life due to wear-resistant indexable inserts
  • Optimised chip removal
  • Highly accurate and stable insert seat
  • Perfect lubrication
  • Large selection of indexable inserts

Advantage
Drilling tool also suitable for stack drilling

Delivery
Reversible tip holder and indexable insert including clamping screw


Brand: HARTNER
Cutting material: HSCo-PM
Max. drilling depth (D): 3xD
Surface: Coated
Angle of the tip: 130 Degree
Shank diameter (d2 h6): 32 mm
Length (l1): 254 mm
Chip flute length (l2): 126,9 mm
Number of cutting edges: 2
Tolerance of shank diameter: h6
Shaft length (l3): 60 mm
Shank style: Cylindrical DIN 6535-HB
Size: 390

Manufacturer part no.: 86683 39,000

EAN no.: 4031096236307

Product Datasheet
