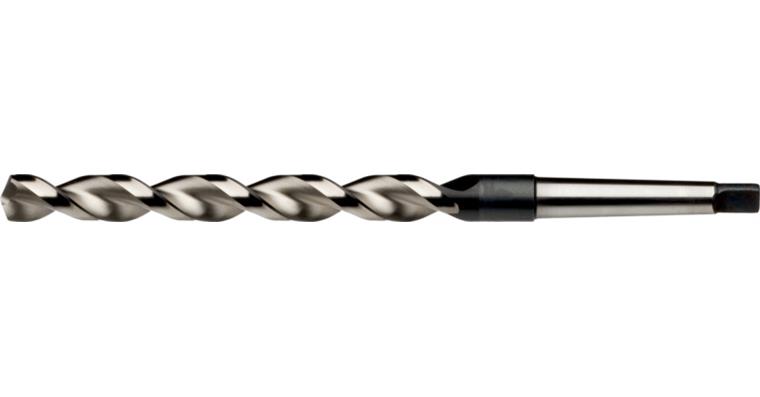

ATORN twist drill TLP HSS, MK 2, 20.0 mm x 385 mm x 260 mm, 130°

ATORN twist drill TLP HSS, MK 2, 20.0 mm x 385 mm x 260 mm, 130°

ATORN twist drill TLP HSS, MK 2, 20.0 mm x 385 mm x 260 mm, 130°
Item no: 1010623 137

Online price:

Still in stock: 1

Application
Geometry with deep-hole profile for application up to a strength of 1000 N/mm².

Execution
Twist drill with deep-hole profile

Advantage
  • Deep-hole profile for optimised chip removal at greater drilling depths without venting
  • effective removal of chips thanks to large chipping spaces

Notes
chamfer nitrated < Ø16; steam treated > Ø16

Brand: ATORN
Material to be processed: Steel | Cast metal | Aluminium
Cutting material: HSS
Surface: Uncoated
Type: TLP
Angle of the tip: 130 Degree
DIN: 341
Tool holding device: Morse taper shank
Cutting edge diameter: 20 mm
Chip flute length: 260 mm
Length: 385 mm
Morse taper size: MK 2
f steel 1000: 0,22 mm/r

ATORN-No.: 10472694

EAN no.: 4050293035841

Product Datasheet Datasheet cutting values
