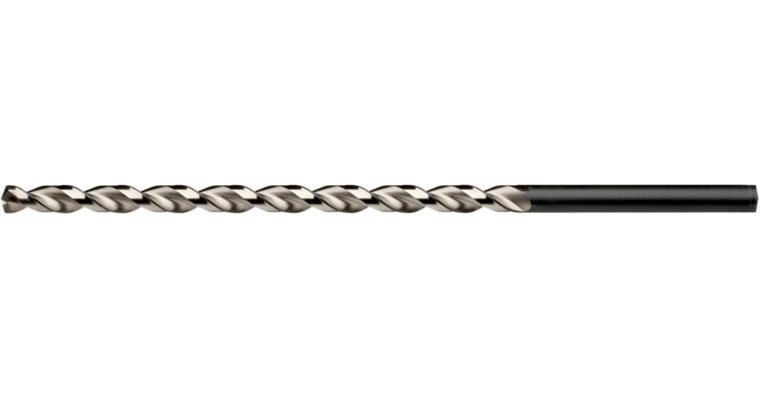

ATORN twist drill TLP HSS, DIN 1869, 10.0 mm x 340 mm x 235 mm, 130°

ATORN twist drill TLP HSS, DIN 1869, 10.0 mm x 340 mm x 235 mm, 130°

ATORN twist drill TLP HSS, DIN 1869, 10.0 mm x 340 mm x 235 mm, 130°
Item no: 1010419 126

Online price:

Available in 6-8 working days.

Application
Geometry with deep-hole profile for application up to a strength of 1000 N/mm².

Execution
Twist drill with deep-hole profile

Advantage
  • Deep-hole profile to optimise chip removal at greater drilling depths without venting
  • effective removal of chips thanks to large chipping spaces

Delivery
Packing unit: drill bit dia. 1.0-6.0 mm = 10 units (price per unit)


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSS
Surface: Uncoated
Type: TLP
Tool holding device: HA parallel shank
Cutting edge diameter: 10 mm
Angle of the tip: 130 Degree
Chip flute length: 235 mm
Length: 340 mm
f steel 700: 0,22 mm/r
DIN: 1869

ATORN-No.: 10472345

EAN no.: 4050293032703

Product Datasheet Datasheet cutting values
