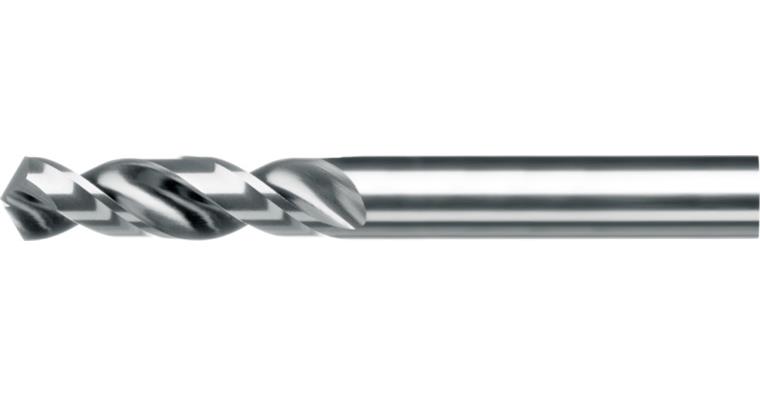

ATORN twist drill U4 HSSE, DIN 1897, 2.0 mm x 38 mm x 12 mm, 118°

ATORN twist drill U4 HSSE, DIN 1897, 2.0 mm x 38 mm x 12 mm, 118°

ATORN twist drill U4 HSSE, DIN 1897, 2.0 mm x 38 mm x 12 mm, 118°
Item no: 1010259 311

Online price:

Still in stock: 9

Application
Universal use in all material groups up to a strength of 1300 N/mm2.

Execution
Twist drill with 4-facet ground

Advantage
  • innovative cutting geometry: 4-faced polished section for drilling without centring
  • universal use: tool costs minimised and greater flexibility for the user

Delivery
Packaging unit: drill Ø 1.0-6.0 mm = 10 pieces (price per piece)


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSSE
Surface: Uncoated
Type: U4
Self-centring: Yes
Tool holding device: HA parallel shank
Cutting edge diameter: 2 mm
Angle of the tip: 118 Degree
Chip flute length: 12 mm
Length: 38 mm
f steel 1000: 0,03 mm/r
DIN: 1897

ATORN-No.: 10476204

EAN no.: 4050293055139

Product Datasheet Datasheet cutting values
