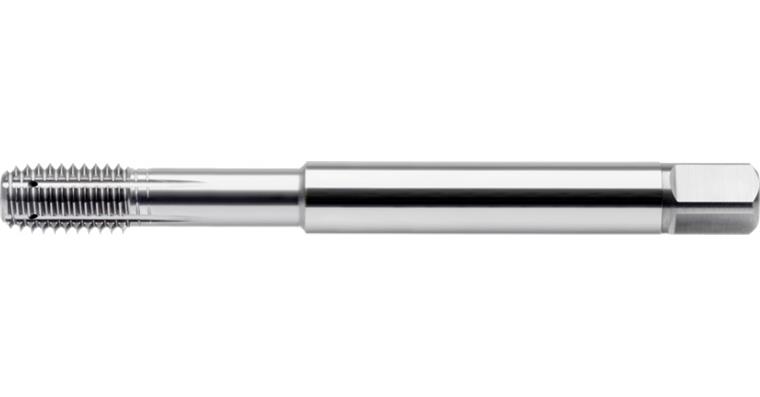

ATORN thread mould SC TiALN DIN 371 M4 x 0.7 mm ISO 2 3xD

ATORN thread mould SC TiALN DIN 371 M4 x 0.7 mm ISO 2 3xD

ATORN thread mould SC TiALN DIN 371 M4 x 0.7 mm ISO 2 3xD
Item no: 1003141 457

Online price:

Available in 4-6 working days.

Application
For producing metric threads in through holes and blind holes on CNC or conventional machines in steel, stainless steel and non-ferrous metals up to a strength of 1300 N/mm².

Execution
M3 and M4 without internal cooling

Advantage
  • Innovative mould geometry ensures very high dimensional accuracy and process reliability
  • Solid carbide cutting material and surface treatment for very high service life requirements

Notes
M

Brand: ATORN
Material to be processed: Universal use
Surface: TiAlN
Lead angle shape: C
Thread type: Metric thread
Thread type x nominal diameter: M4
Pitch: 0,7 mm
Cutting material: SC
Core hole diameter: 3,7 mm
Length: 63 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank diameter: 4,5 mm
Shank square: 3,4 mm
Coolant supply: Internal
Tolerance of screw taps: ISO 2 (6H)
Application type/machine type: CNC
Cutting speed (steel 1000) suitability (P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (P 1300 N/mm²): 1
Overall stainless steel suitability (M): 1
fitness not iron total (N): 2
Cutting speed (cast) suitability (K): 3
fitness Titan/Nickel/Super total (S): 3
Cutting speed (hard 65) suitability (H 65HRC): 3
DIN: 371 similar

ATORN-No.: 10482220

EAN no.: 4050293578447

Product Datasheet Datasheet cutting values
