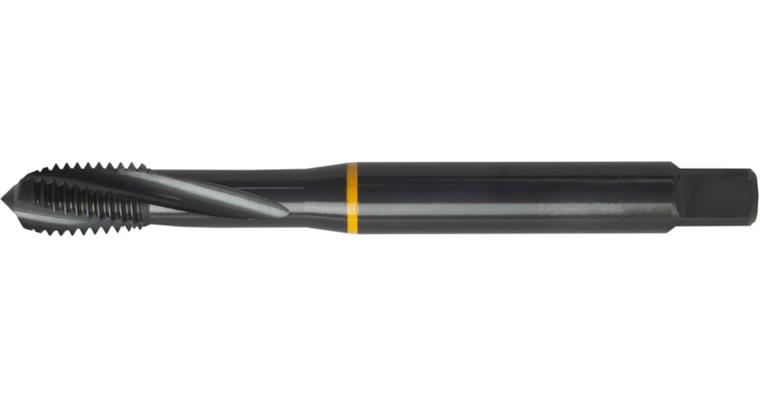

ATORN screw tap HSSE C 371 15° M2.5 0.45 mm ISO2 S 1.5xD CNC M

ATORN screw tap HSSE C 371 15° M2.5 0.45 mm ISO2 S 1.5xD CNC M

ATORN screw tap HSSE C 371 15° M2.5 0.45 mm ISO2 S 1.5xD CNC M
Item no: 1003141 076

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the stainless steel material group.

Execution
With reinforced shank

Advantage
Long service life and good process reliability due to innovative cutting geometry when machining stainless steel


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M2.5
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 1.5xD
Lead angle shape: C
Length: 50 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 0,45 mm
Twist angle: 15° (right)
DIN: 371
Shank diameter: 2,8 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 2,05 mm
Type: M MAX Control
Coolant supply: External
Shank square: 2,1 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 2
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10470878

EAN no.: 4050293019056

Product Datasheet Datasheet cutting values
