ATORN screw tap HSSE UltraHL B 371 0° M5x0.8 ISO2 D 3xD CNC UNI M

ATORN screw tap HSSE UltraHL B 371 0° M5x0.8 ISO2 D 3xD CNC UNI M

ATORN screw tap HSSE UltraHL B 371 0° M5x0.8 ISO2 D 3xD CNC UNI M
Item no: 1003140 932

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC machines or conventional machines in through holes in steel, stainless steel, non-ferrous metals, cast iron and special alloys up to 1200 N/mm².

Advantage
  • ideal for long service life requirements and materials that are difficult to machine, such as stainless steel
  • Innovative cutting geometry and ULTRA HL coating guarantee high process reliability even under difficult machining conditions


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M5
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 70 mm
Cutting material: HSSE
Surface: ULTRA HL
Pitch: 0,8 mm
Twist angle: 0°
DIN: 371
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 4,2 mm
Type: UNI MAX 45HL Control
Coolant supply: External
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10482421

EAN no.: 4050293578775

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • Blind hole screw tap M DIN 376 40° shape C 2.5xD HSS-E-TiCN M14
  •
    ATORN screw tap HSSE-PM ULTRA HL form B 374 50° MF4x0.50 ISO2
  •
    Blind hole screw tap M DIN 376 40° shape C 2.5xD HSS-E M16
  •
    Hammer drill bit SDS-max carbide-tipped 4 cutting edges 18 x 540 mm
  •

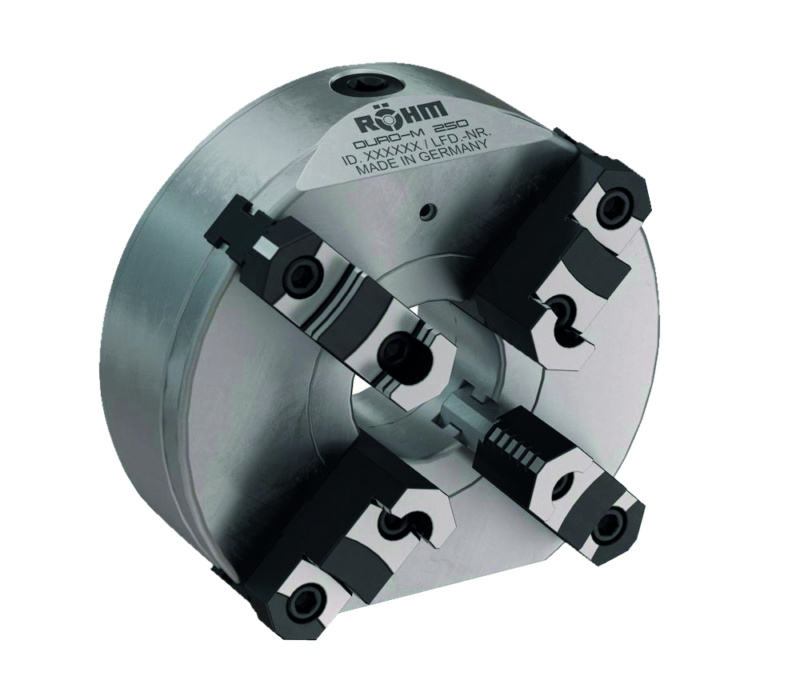

    Four-jaw lathe chuck steel body Kk. Size 4 DIN 55027 dia. 160 mm
  •
