ATORN screw tap HSSE UltraHL B 5156 0° thread 7/8 in ISO2 D 3xD CNC UNI

ATORN screw tap HSSE UltraHL B 5156 0° thread 7/8 in ISO2 D 3xD CNC UNI

ATORN screw tap HSSE UltraHL B 5156 0° thread 7/8 in ISO2 D 3xD CNC UNI
Item no: 1003140 886

Online price:

Available in 4-6 working days.

Application
For manufacturing pipe threads on CNC or conventional machines in through holes in the steel, stainless steel, NF metal, cast and special alloy material groups up to a strength of 1000 N/mm².

Execution
With protruding shank

Advantage
  • Innovative cutting geometry and ULTRA HL coating guarantee high process reliability even under difficult machining conditions
  • High-quality, torsion-resistant HSSE cutting material and cutting edge finish for very high service life requirements
  • Universal use for maximum flexibility


Brand: ATORN
Thread type: Pipe thread
Thread type x nominal diameter in inches: G 7/8 in
Tolerance of screw taps (Tol.): ISO 2 (6H)
Number of thread starts per inch: 14
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 150 mm
Cutting material: HSSE
Surface: ULTRA HL
Twist angle: 0°
DIN: 5156
Shank diameter: 22 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 28,25 mm
Type: UNI MAX 45HL Control
Coolant supply: External
Shank square: 18 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10482878

EAN no.: 4050293580396

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • Blind hole screw tap M DIN 376 15° shape C 1.5xD HSS-E M12
  •

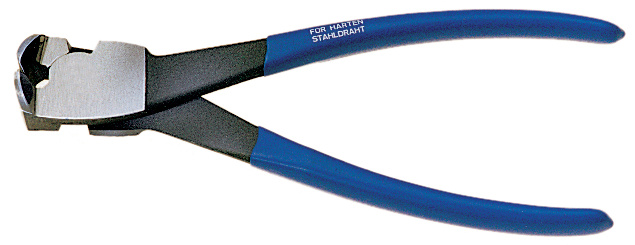

    ATORN heavy-duty end cutting nippers, 160 mm, polished, 3-component grip covers
