ATORN NC reamer HSSE T=3 B 7-8° 1.71-1.90x 38x7.5mm DIN 212, opt. 0.01

ATORN NC reamer HSSE T=3 B 7-8° 1.71-1.90x 38x7.5mm DIN 212, opt. 0.01

ATORN NC reamer HSSE T=3 B 7-8° 1.71-1.90x 38x7.5mm DIN 212, opt. 0.01
Item no: 1003130 105

Online price:

Available in 6-8 working days.

Application
for producing fit tolerances in through holes on NC machines or conventional machines up to 1000 N/mm².

Execution
7–8° left-hand spiral, type B

Advantage
  • Delivered ex stock
  • high-quality HSSE cutting material for a very long service life
  • good bore hole quality (dimensional tolerance, roundness, surface quality)

Notes
When ordering, please only enter the diameter. The tolerance cannot be selected (e.g. 8.53 mm +0.005 mm)

Brand: ATORN
Material to be processed: Universal use
Surface: Uncoated
Cutting material: HSSE
Tolerance of fit: 0 / +0,004 mm
Groove type: Left-hand twist, 7-8°
Tool holding device: HA parallel shank
Min./max. optional diameter: 1.71-1.90 mm
Length: 46 mm
Cutting edge length: 10 mm
Projecting length: 20 mm
Shank diameter: 2 mm
Number of cutting edges: 4 PCS
f steel 1300: 0,12 mm/r
DIN: 212 similar

ATORN-No.: 12160675

EAN no.: 4050293430691

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • ATORN NC reamer HSSE T=6 D 7-8° 10.61-11.05x 125x36mm HA sim. DIN 212, opt.
  •
    ATORN NC reamer HSSE T=3 B 7-8° 0.95-1.06x 34x5.5mm DIN 212, opt. 0.01
  •
    ATORN NC reamer HSSE T=8 D 7-8° 18.51-19.00x 189x58mm HA sim. DIN 212, opt.
  •
    ATORN NC reamer HSSE T=8 D 7-8° 16.01-16.50x 175x54mm HA sim. DIN 212, opt.
  •
    ATORN NC reamer HSSE T=8 D 7-8° 14.51-15.00x 162x50mm HA sim. DIN 212, opt.
  •
    ATORN NC reamer HSSE T=8 D 7-8° 16.51-17.00x 175x54mm HA sim. DIN 212, opt.
  •
    ATORN screw tap HSSE C 371 40° M5 0.8 mm ISO2 S 2.5xD P
  •
    ATORN NC reamer HSSE T=6 D 7-8° 6.71-7.05x 70x18mm HA sim. DIN 212, opt. 0.01
  •
    ATORN NC reamer HSSE T=6 B 7-8° 3.36-3.75x 70x18mm HA sim. DIN 212, opt.
  •
    ATORN NC reamer HSSE T=8 D 7-8° 15.51-16.00x 170x52mm HA sim. DIN 212, opt.
  •
    ATORN NC reamer HSSE T=8 D 7-8° 13.56-14.00x 160x47mm HA sim. DIN 212, opt.
  •

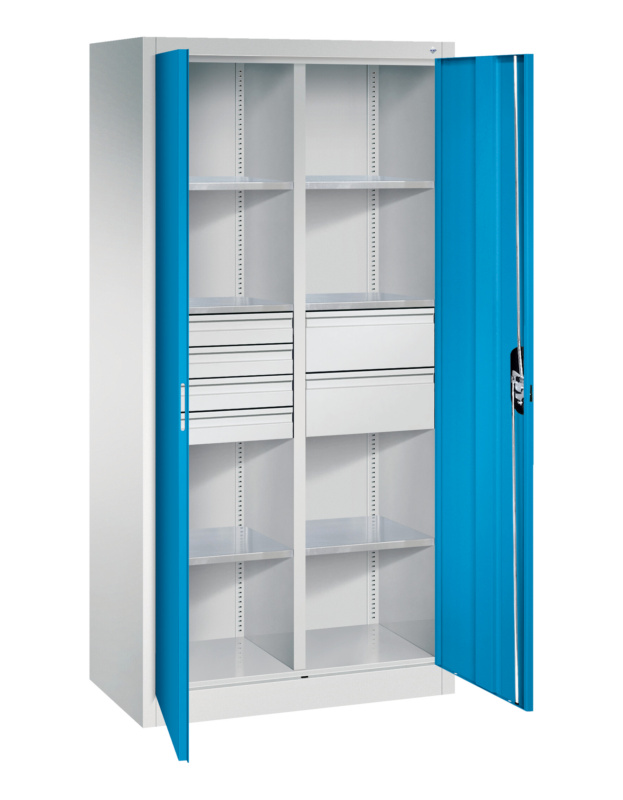

    Hinged door tool cab. 1950x930x500mm, 6 shelves, 4 sm.+2 lrg. drawers RAL5012
