ATORN NC reamer HSSE T=3 B 7-8 degrees 1.19-1.32x 36x6.5mm HA sim. DIN 212, opt.

ATORN NC reamer HSSE T=3 B 7-8 degrees 1.19-1.32x 36x6.5mm HA sim. DIN 212, opt.

ATORN NC reamer HSSE T=3 B 7-8 degrees 1.19-1.32x 36x6.5mm HA sim. DIN 212, opt.
Item no: 1003130 052

Online price:

Available in 6-8 working days.

Application
for producing fit tolerances in through holes on NC machines or conventional machines up to 1000 N/mm².

Execution
7–8° left-hand spiral, type B

Advantage
  • Diameter and fit can be ordered to suit, shortest possible delivery time
  • high-quality HSSE cutting material for a very long service life
  • good bore hole quality (dimensional tolerance, roundness, surface quality)

Notes
Caution: when ordering, specify the diameter and fit tolerance (for example 8.53 H7)

Brand: ATORN
Material to be processed: Universal use
Surface: Uncoated
Cutting material: HSSE
Tolerance of fit: Optional
Groove type: Left-hand twist, 7-8°
Tool holding device: HA parallel shank
Min./max. optional diameter: 1.19-1.32 mm
Length: 38 mm
Cutting edge length: 8,1 mm
Projecting length: 13 mm
Shank diameter: 2 mm
Number of cutting edges: 3 PCS
f steel 1300: 0,12 mm/r
DIN: 212 similar

ATORN-No.: 12160003

EAN no.: 4050293393422

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN NC reamer HSSE T=3 B 7-8 degrees 1.07-1.18x 36x6.5mm HA sim. DIN 212, opt.
    73,60 €
  • ATORN NC reamer HSSE T=3 B 7–8° 1.71–1.90 x 38x7.5mm HA sim. DIN 212 opt.
    45,60 €
  • ATORN machine tap, HSSE, vaporised, 0°, shape B, MF8x1.0 6H
  •
    ATORN forward and reverse SC-TiAlN quarter circle cutter radius 0.2 mm HA shaft
  •
    ATORN forward and reverse SC-TiAlN quarter circle cutter radius 0.3 mm HA shaft
  •
    ATORN forward and reverse SC-TiAlN quarter circle cutter radius 0.4 mm HA shaft
  •
    ATORN forward and reverse SC-TiAlN quarter circle cutter radius 0.8 mm HA shaft
  •
    Compression collet chuck type ER 32 4537E shank diameter 11.0 mm, square 9.0 mm
  •
    ATORN V-block jaw type PB 125 mm with horizontal and vertical V-block
    143,00 €

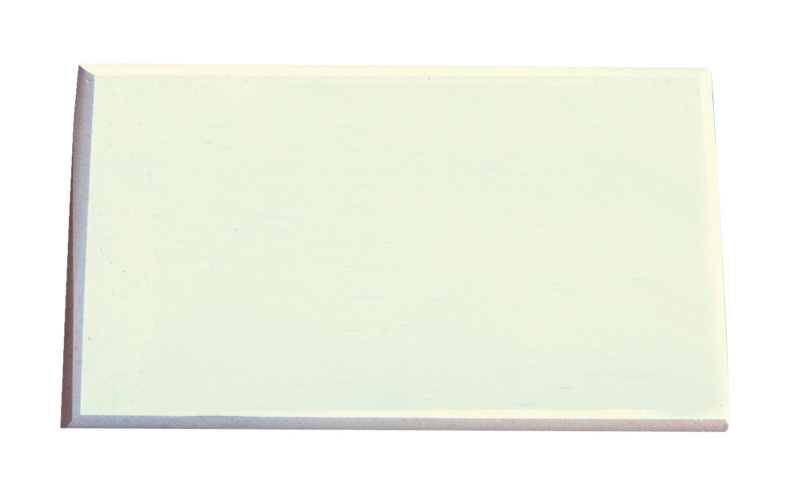

  • Honing stone super fine approx. 115x60x18-20 mm
  •

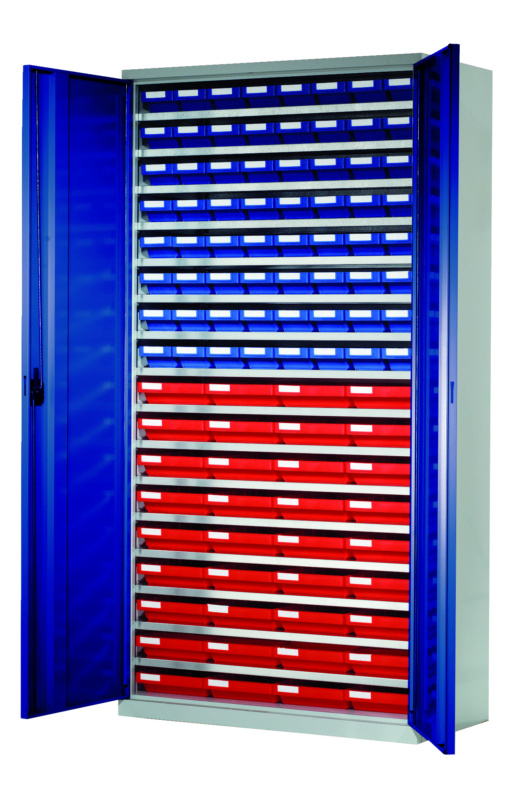

    Storage cabinet H1950xW1000xD410 mm including 100 boxes RAL 7035/5010
  •
