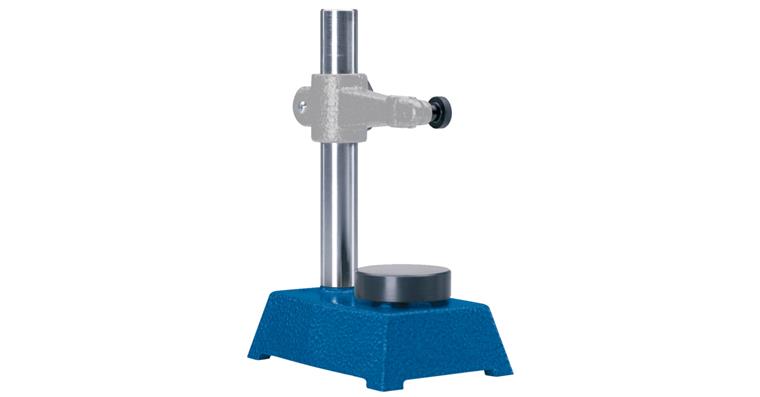

Small meas. table acc. DIN 876/0 H 100mm rigid transv. arm 50mm w/o dial gauge

Small meas. table acc. DIN 876/0 H 100mm rigid transv. arm 50mm w/o dial gauge

Small meas. table acc. DIN 876/0 H 100mm rigid transv. arm 50mm w/o dial gauge
Item no: 1034612 101

Online price:

Still in stock: 2

Execution
  • With rigid measuring arm and round table, stable design
  • Table surface hardened, ground and lapped
  • Flatness in accordance with DIN 876/0
  • For dial gauges with shank dia. 8 mm (h6)
  • Column hardened and finely ground
  • Clamping by star-shaped handle

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank.

Brand: LIZZARD
Overhang: 49 mm
Measuring table diameter: 50 mm
Max. measurement height: 100 mm
Column diameter: 22 mm
Suitable for shaft diameter: 8 mm
Flatness tolerance: 2 µm
Material of base plate: Steel

EAN no.: 4024496081882
