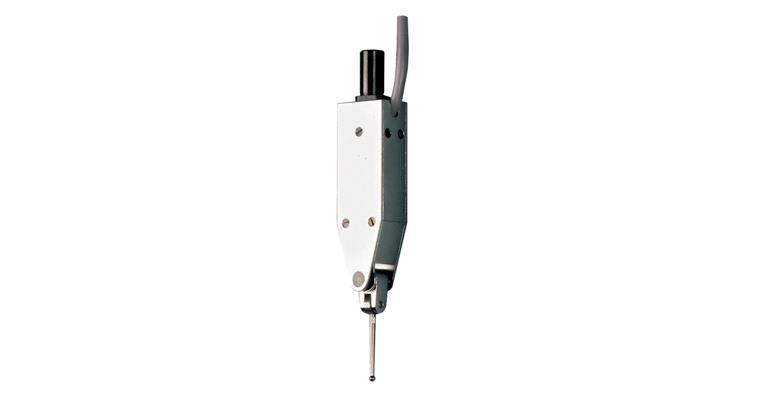

Inductive lever gauge probe 1318 measuring range -0.3 to +1 mm

Inductive lever gauge probe 1318 measuring range -0.3 to +1 mm

1033106101 Inductive lever gauge probe 1318 measuring range -0.3 to +1 mm
Item no: 1033106 101

Online price:

Available in 6-8 working days.

Application
Suitable for a wide variety of standard applications in multi-point measuring technology. Can also be used as an alternative to dial gauges or precision pointers in measuring instruments such as internal precision measuring instruments, precision pointer snap gauges etc.

Execution
  • Angle of probe can be flexibly adapted to the measuring object surface
  • High operational robustness as the measuring system is separate from the guide and clamping shank
  • Excellent clamping properties
  • Information on chemical resistance: resistant to oil, petrol, water and aliphatics. Moderately resistant to acids, bases, solvents and ozone


Brand: MAHR
Calibration Group: On demand
Measuring range of electronic length measuring technology: -0,3 mm to 1 mm
Measurement force: 0,25 N
Measuring span of electronic length measuring technology: 1,3 mm
Max. scanning path: 1 mm
Sensor arm length: 21 mm
Ball diameter: 2 mm
Repetition standard deviation acc. to DIN 1319: 0,03 µm
Gauge slide length: 21 mm
Reversal error: 0,5 µm
Shank diameter: 8 mm
Sensitivity deviation: 0,5 %
IP protection class: IP 50
Plug connector: 0 - not applicable
Model: 1318
Cable length: 1,5 m
Cable output direction: Axial

Manufacturer part no.: 5313180

EAN no.: 4059192054892

Product Datasheet
