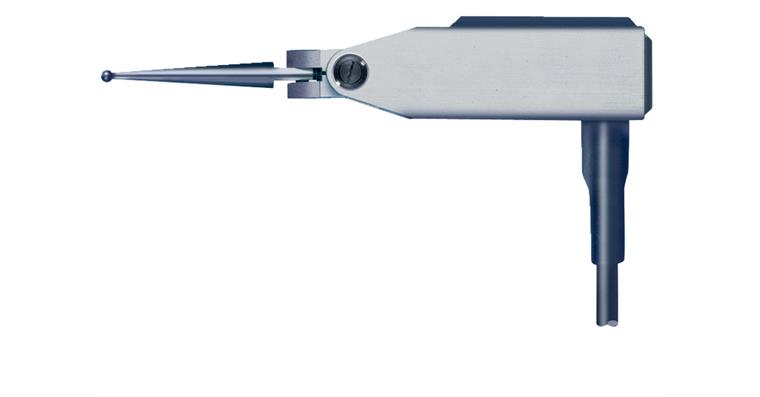

TESA electronic lever measuring probe GT 31F0.20 N measuring force,+/-0.3 mm

TESA electronic lever measuring probe GT 31F0.20 N measuring force,+/-0.3 mm

1001331783 TESA electronic lever measuring probe GT 31F0.20 N measuring force,+/-0.3 mm
Item no: 1001331 783

Online price:

Available in 6-8 working days.

Application
Lever gauge probes, the angle of which can be adjusted, suitable for measurements in two directions. Ideal for parallelism and straightness measurements as well as for measuring tasks on both sides

Execution
  • Lever system mounted on tapers and counter-balanced
  • Removable gauge slide with carbide probe ball
  • Probe can be swivelled by 180°
  • Housing with two dovetail strips
  • Includes clamping shank diameter 8 mm
  • 5-pin plug in line with DIN 45322, cable length 2 m

Advantage
  • Two safety clutches for collision protection
  • Automatic probe direction reversal with constant display reading

Delivery
Measuring probe, clamping shank diameter 8 mm, declaration of conformity


Brand: TESA TECHNOLOGY
Measuring range of electronic length measuring technology: +/- 0.3 mm
Measurement force: 0,2 N
Measuring span of electronic length measuring technology: 0,6 mm
Max. scanning path: 0,7 mm
Sensor arm length: 40 mm
Ball diameter: 2 mm
Max. linearity error (L in mm, measured from electric zero point): 0.2 µm + (50 x L²) µm
Repetition standard deviation acc. to DIN 1319: 0,1 µm
Gauge slide length: 40 mm
Shank diameter: 8 mm
IP protection class: IP 40
Plug connector: 5-pin in accordance with DIN 45322
Model: GT 31
Cable length: 2 m
Cable output direction: Radial

Manufacturer part no.: 03210803

EAN no.: 7630041112344

Product Datasheet
